High-Performance Industrial Machine for Modern Manufacturing
New X0MS - Full View
Get a complete look at the X0MS — sleek, durable, and designed for consistent industrial-grade performance. This image highlights the sturdy build and ergonomic layout of the machine.

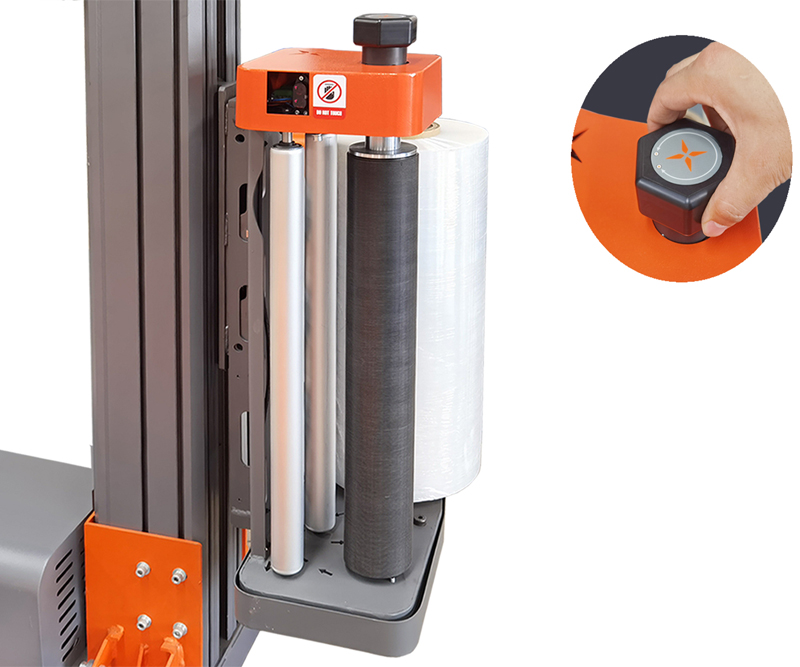

Carriage Assembly
The knob provides tactile feedback for easy tension adjustment, while graded settings ensure more uniform film wrapping.

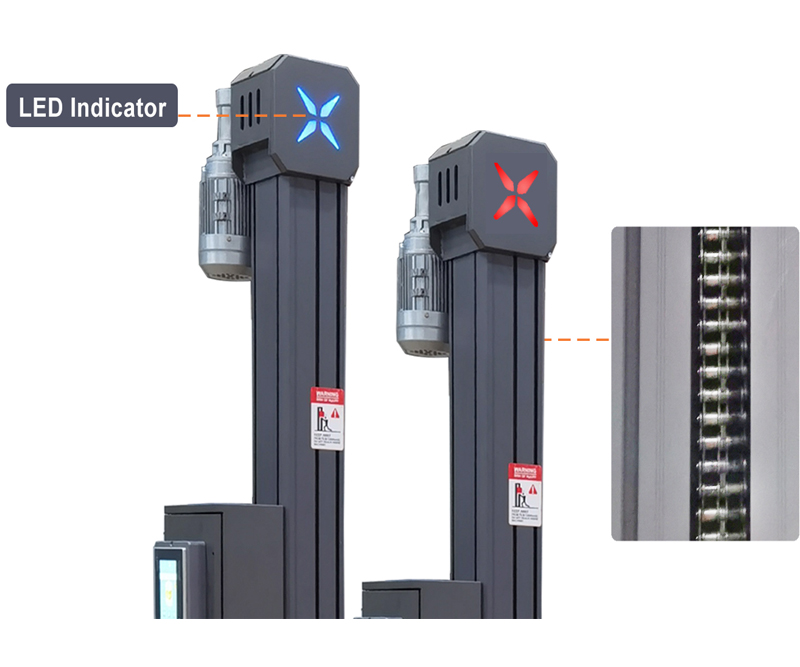

LED Indicator System
The built-in LED indicator provides quick visual feedback for operational status, safety warnings, and maintenance alerts.

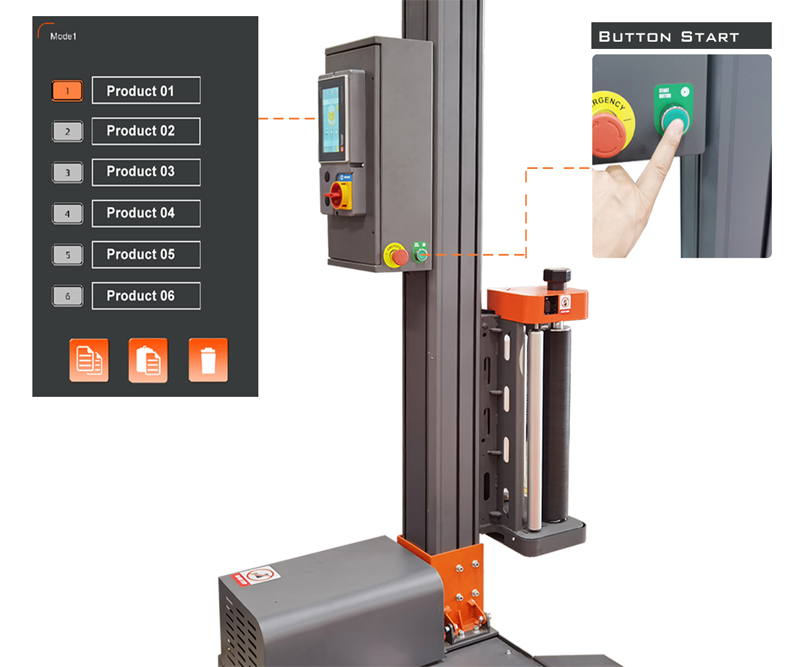

6 Memory Functions & One-Touch Start
Six programmable wrapping memory settings simplify parameter configuration, while the one-touch start makes operating the machine faster and easier.

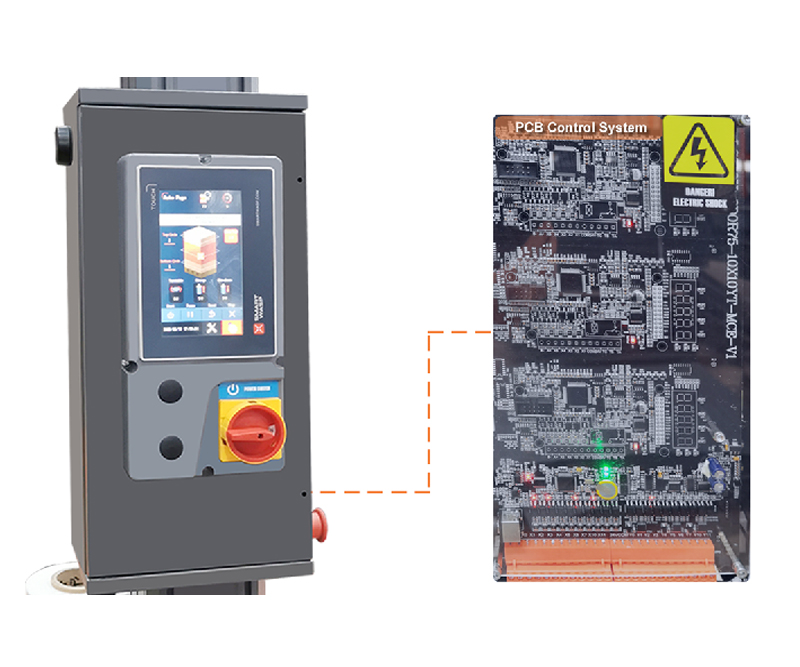

High-Precision PCB
Advanced circuit design ensures efficient power distribution and reliable communication between all machine modules.
Click any image to view in fullscreen.
Technical Specifications
Brand
SmartWasp
Model
X0ms
Load Weight
1500kg / 2000kg / 2500kg
Packing Speed
25–30 loads per hour
Column Height
2400mm / 2800mm / 3200mm
Packing Height
2000mm / 2400mm / 2800mm
Turntable Size
1500 / 1650 / 1800 / 2000 / 2200 / 2400 mm
Turntable Height
86.7mm
Turntable Speed
3–10 rpm
Pre-stretch Rate
Mechanical Stretch
Up & Down Speed
1.5–5 m/min
Film Width
500mm
Film Paper Core
76mm
Noise Level
≤75 dB(A)
Working Environment
Humidity ≤90% | Temperature −10–40°C
Motor
Smart Wasp
Machine Power
0.75 kW / 0.375 kW / 0.375 kW
Voltage
2P AC 220V 50Hz
Machine Weight
450kg (1500mm) | 530kg (1650mm)
Machine Size
L2335 × W1500 × H2400 (mm)
Soft Start & Stop
Included
Intelligent Alarm
Included
Stop at Original
Included
Turntable Lock
Included
Cut Film
Manual
Fix Film on Pallet
Artificial Supplementary
PLC
PCB Integrated Circuit Plate
Inverter
Included
Touch Screen
Smart Wasp
Contacts
Schneider
Button Switch
Schneider
Approaching Switch
SICK
Safety Device
Film Carriage Bottom Safety Sensor
Pneumatic Components
AirTac / Festo
Industrial Appearance
Metal Plate
Remote Control
Optional
Certificate
CE
Optional Add-ons
Turntables & Ramps
Standard turntables (various sizes: 1650mm, 1800mm, 2000mm)
