Machine X0PS
New X0ps
High-Performance Industrial Machine for Modern Manufacturing

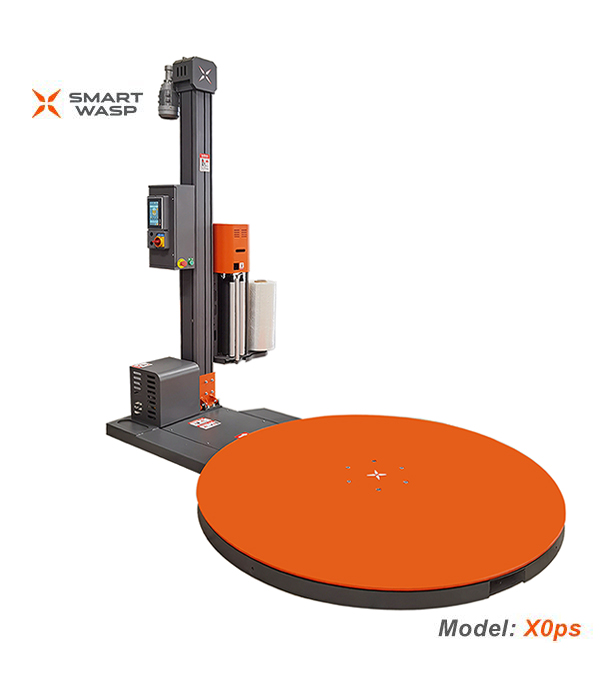

Machine X0PS - Full View
Get a complete look at the X0PS — sleek, durable, and designed for consistent industrial-grade performance.

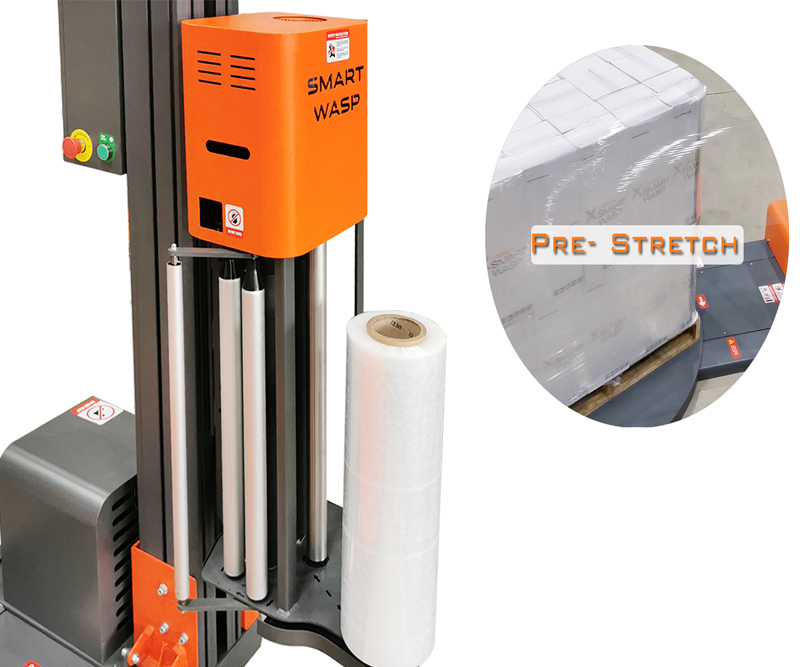

Mechanical Film Carriage
The knob provides tactile feedback for easy tension adjustment, while graded settings ensure more uniform film wrapping.

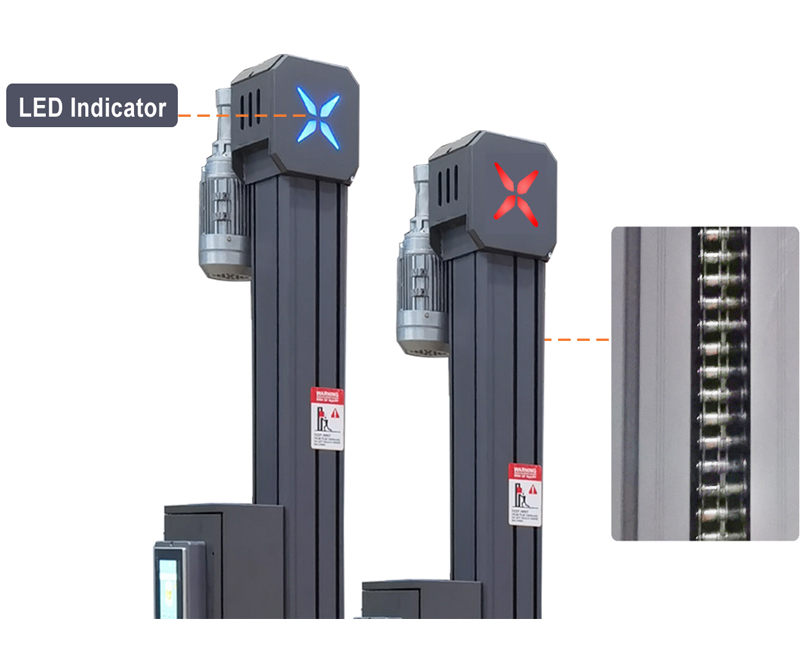

LED Indicator System
Provides quick visual feedback for operational status, safety warnings, and maintenance alerts.

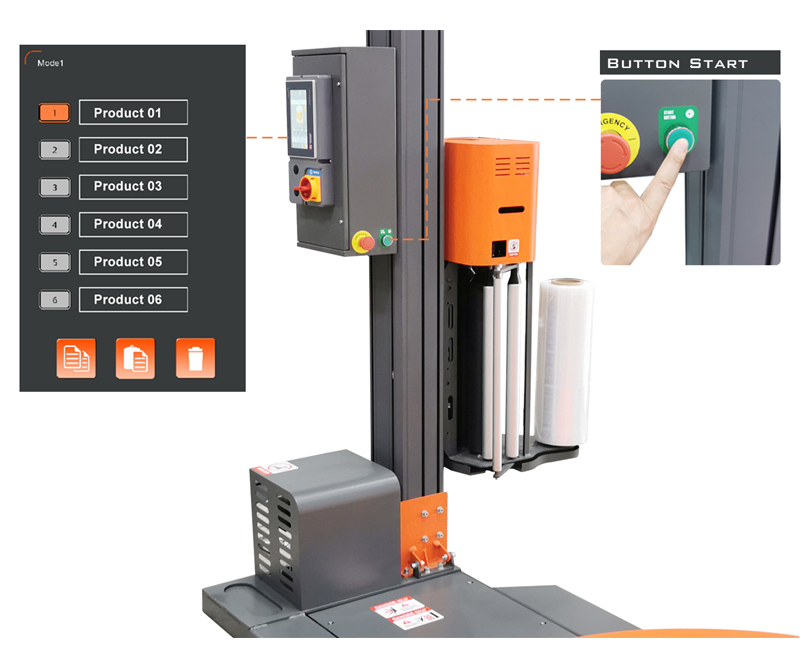

6 Memory Functions & One-Touch Start
Six programmable wrapping memory settings simplify configuration, and one-touch start makes operation quick and easy.

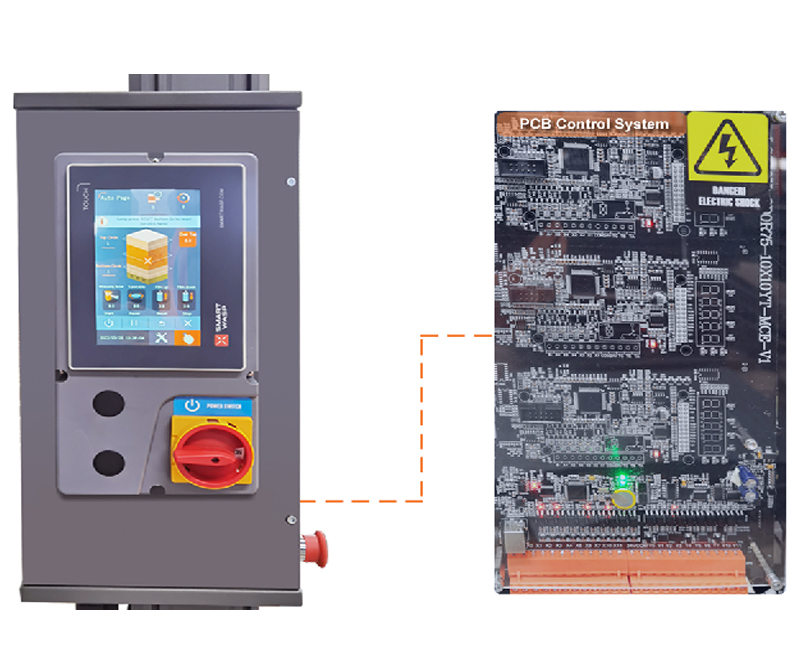

High-Precision PCB
Advanced circuit design ensures efficient power distribution and reliable communication between all machine modules.
Click any image to view in fullscreen.
Technical Specifications
| Brand |
SmartWasp |
Model |
X0ps |
| Load Weight |
1500kg / 2000kg / 2500kg |
Turntable Speed |
3–10 rpm |
| Packing Speed |
25–30 loads/h |
Column Height |
2400mm / 2800mm / 3200mm |
| Packing Height |
2000mm / 2400mm / 2800mm |
Turntable Size |
1500 / 1650 / 1800 / 2000 / 2200 / 2400 mm |
| Turntable Height |
86.7mm |
Pre-stretch Rate |
100% / 200% / 300% |
| Up & Down Speed |
1.5–5 m/min |
Film Width |
500mm |
| Film Paper Core |
76mm |
Noise Decibel |
≤75dB(A) |
| Working Environment |
Humidity ≤90%, Temperature −10–40℃ |
Motor |
Smart Wasp |
| Machine Power |
0.75KW / 0.375KW / 0.375KW |
Voltage |
2P AC 220V 50Hz |
| Machine Weight |
480kg (1500mm) / 550kg (1650mm) |
Machine Size |
L2335 × W1500 × H2400 mm |
| Soft Start & Stop |
Included |
Intelligent Alarm |
Included |
| Stop at Original |
Included |
Turntable Lock |
Included |
| Cut Film |
Manual |
Fix Film on Pallet |
Artificial Supplementary |
| PLC |
PCB Integrated Circuit Plate |
Inverter |
Included |
| Touch Screen |
Smart Wasp |
Contacts |
Schneider |
| Button Switch |
Schneider |
Approaching Switch |
SICK |
| Safety Device |
Film Carriage Bottom Safety Sensor |
Pneumatic Components |
AirTac / Festo |
| Industrial Appearance |
Metal Plate |
Remote Control |
Optional |
| Certificate |
CE |
|
|
Optional Add-ons
Turntables & Ramps
- Standard turntables (various sizes: 1650mm, 1800mm, 2000mm)
- M-Shape turntable
- Ramps compatible with 1500mm / 1650mm / 1800mm / 2000mm turntables
Weighing & Measurement
- Standard weighing scale
- Weighing scale with printing capability
Wrapping Enhancements
- Adjustable wrapping height modules (e.g., 2400mm, 2800mm)
- Sensors for detecting black color products
- Temperature operation enhancements (for sub-zero conditions, −0 to −20°C)
