Smart Wasp X100a
Advanced Fully Automatic Pallet Wrapping System
.jpg)

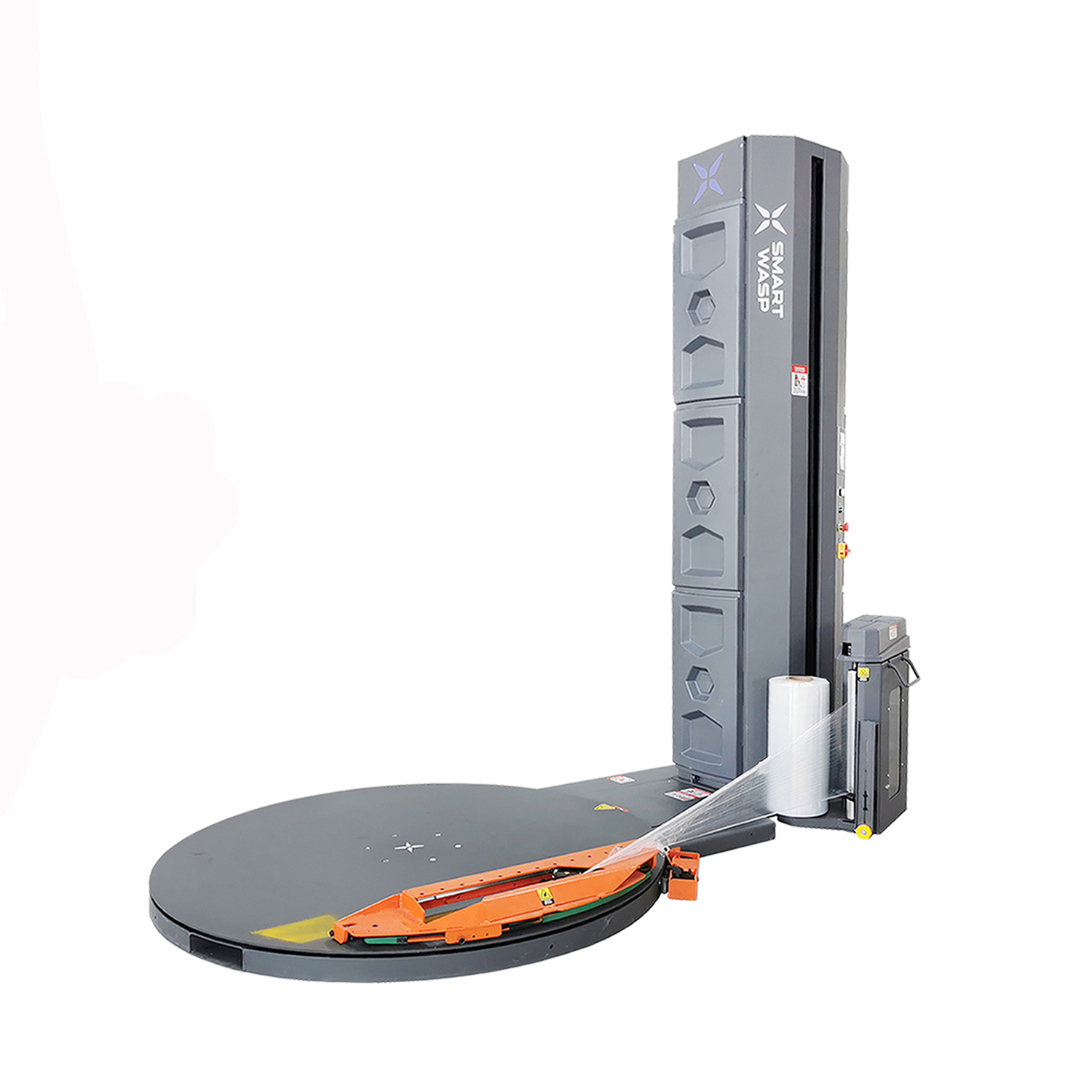

Smart Wasp X100a - Full View
The X100a delivers high-speed, automatic pallet wrapping with consistent load stability and minimal operator effort.

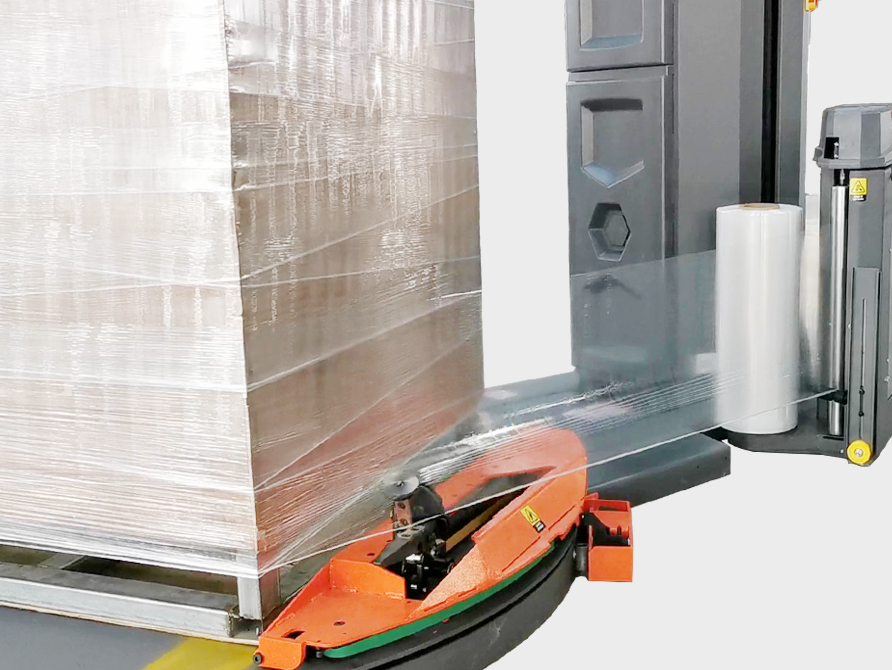

Automatic Cut & Clamp Film System
Eliminate manual film handling — the X100a’s automatic cut and clamp system securely grips, cuts, and applies film automatically for safe, efficient operation.

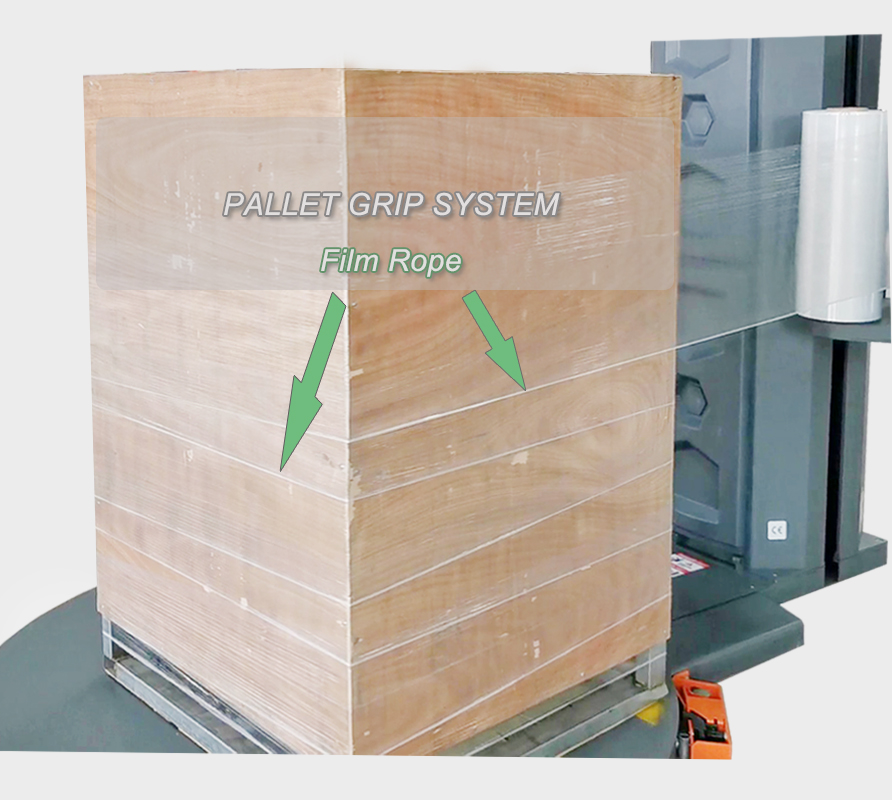

Pallet Grip System
The film forms a rope that secures the pallet base and load tightly — preventing movement during transport and replacing the need for strapping.

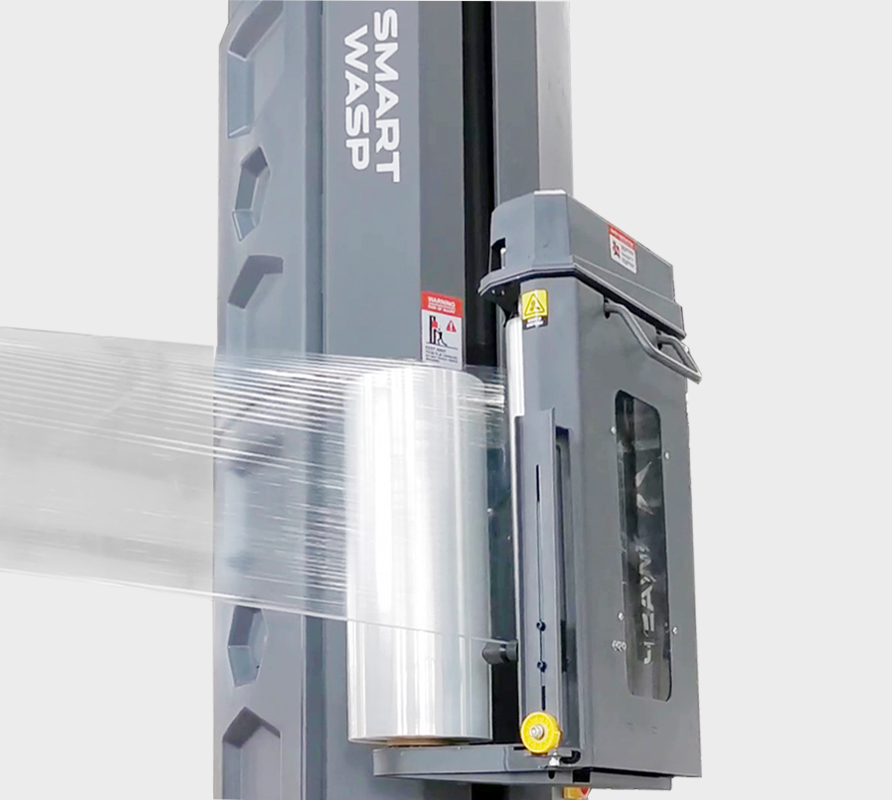

Film Stretch System
Achieve up to 380% pre-stretch for optimized film usage and exceptional wrapping efficiency.
Multi-Layer Wrapping Function
Configure up to nine wrapping layers with variable tension and reinforcement zones — ideal for secure or delicate goods.

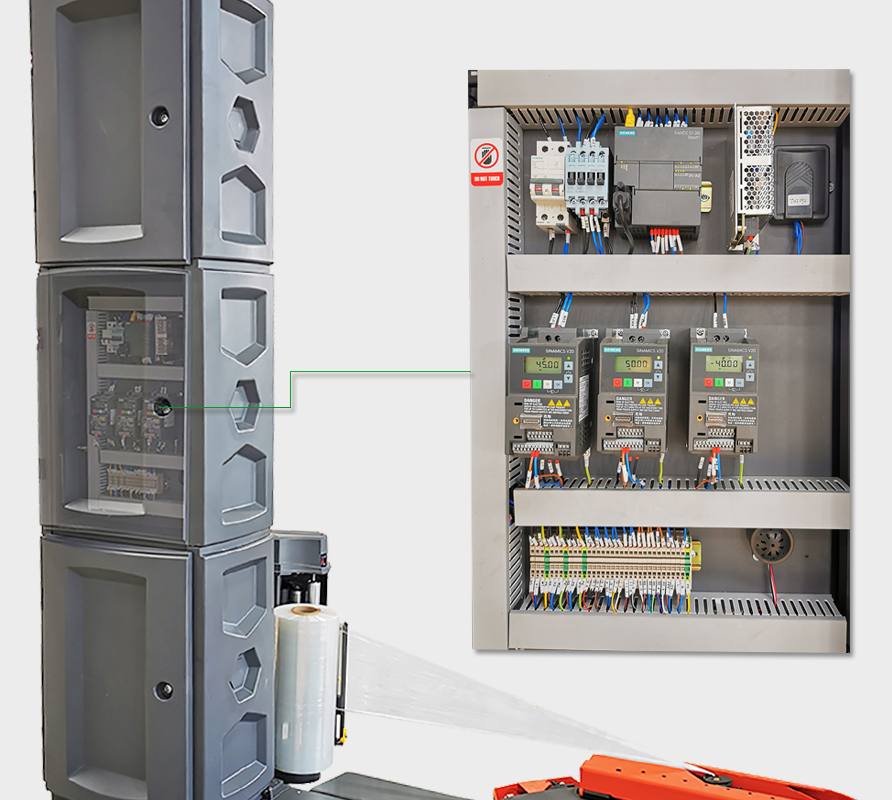

Premium Components
Built using SIEMENS PLC and inverter, SICK sensors, OMRON switches, and WEIDMULLER terminals for long-lasting reliability and performance.

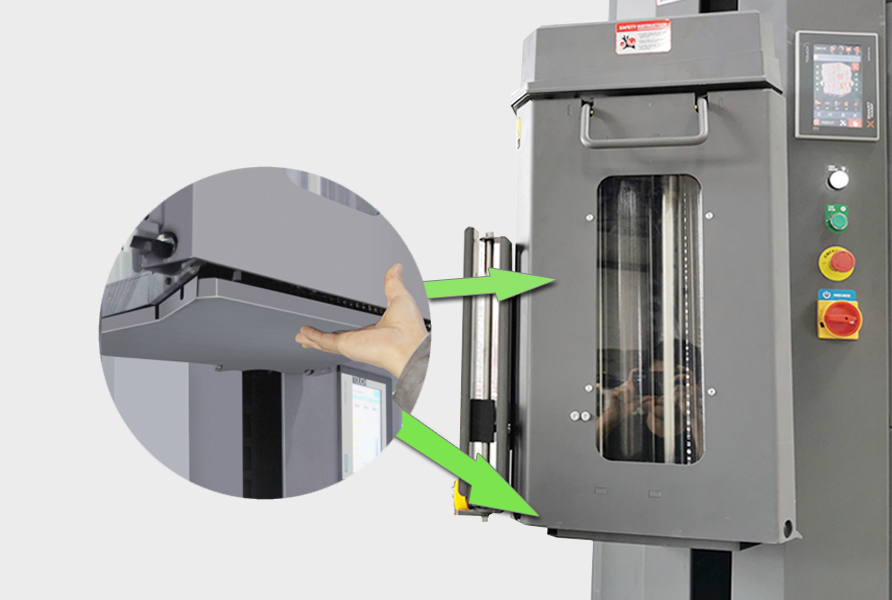

Advanced Safety Technology
Safety sensors under the film carriage, transparent inspection panels, and deviation alarms ensure maximum operator protection.

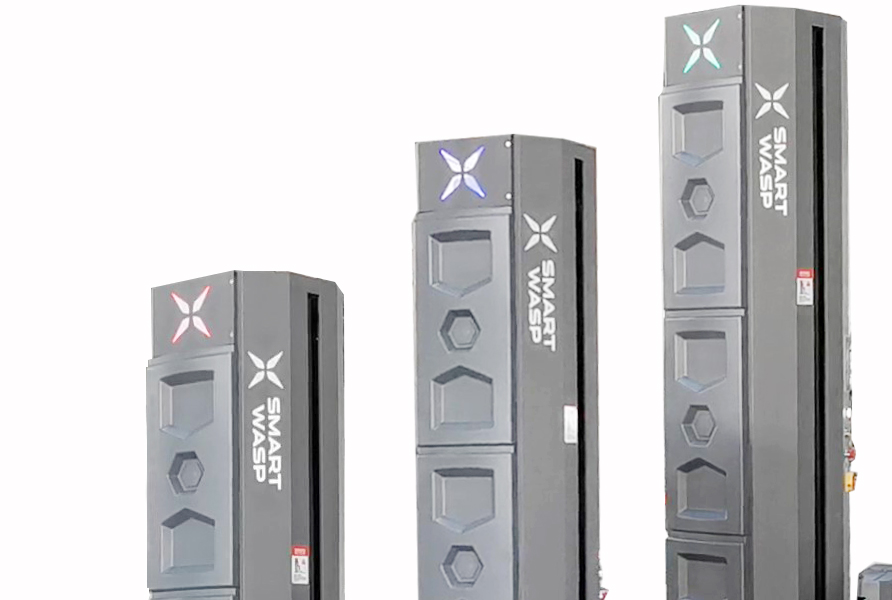

Intelligent Operation Guidance System

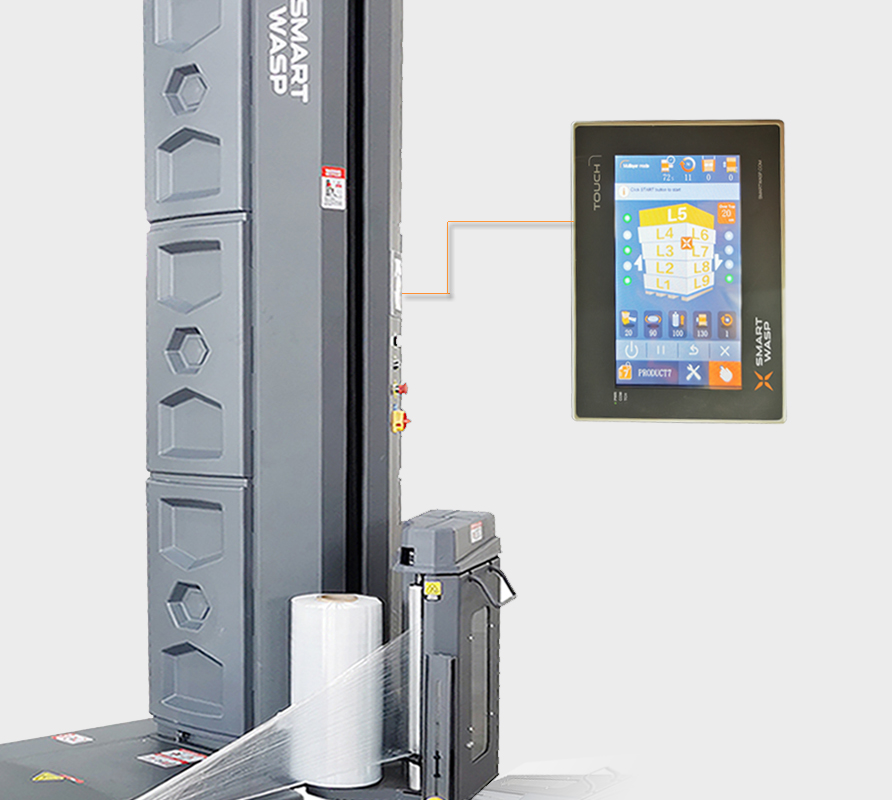

LED indicators display machine status (Blue: Ready, Green: Running, Red: Alarm), while the touchscreen guides users through operations and alerts.
Optional Add-ons & Customisation
Enhance the performance and adaptability of your Smart Wasp X100a with a range of optional features designed for efficiency, flexibility, and precision.
Turntable Options
- Available sizes: 1800mm, 2000mm
- M-shape turntable design for easier pallet entry
- Ramp options compatible with 1650–2000mm turntables
Weighing & Measurement Systems
- Integrated weighing scale for precise load measurement
- Optional scale with label printing capability
Height & Wrapping Adjustments
- Custom wrapping heights available: 1800mm, 2800mm
- Electric rope wrapping system upgrade
Drive & Sensor Enhancements
- Motor drive top pressure system (500–2200mm)
- Optional 380V 50/60Hz 3P configuration
- High-sensitivity black object sensor
