Safety switch / guard not making consistently (random mid-cycle stops)
Stops Mid-Cycle
If your pallet wrapper starts a cycle but stops part-way through, the cause is usually a safety input opening, a sensor interruption, film delivery issues, or the machine detecting an abnormal load condition. The checks below cover the most common “mid-cycle stop” causes we see in the field.
Common things we see on site

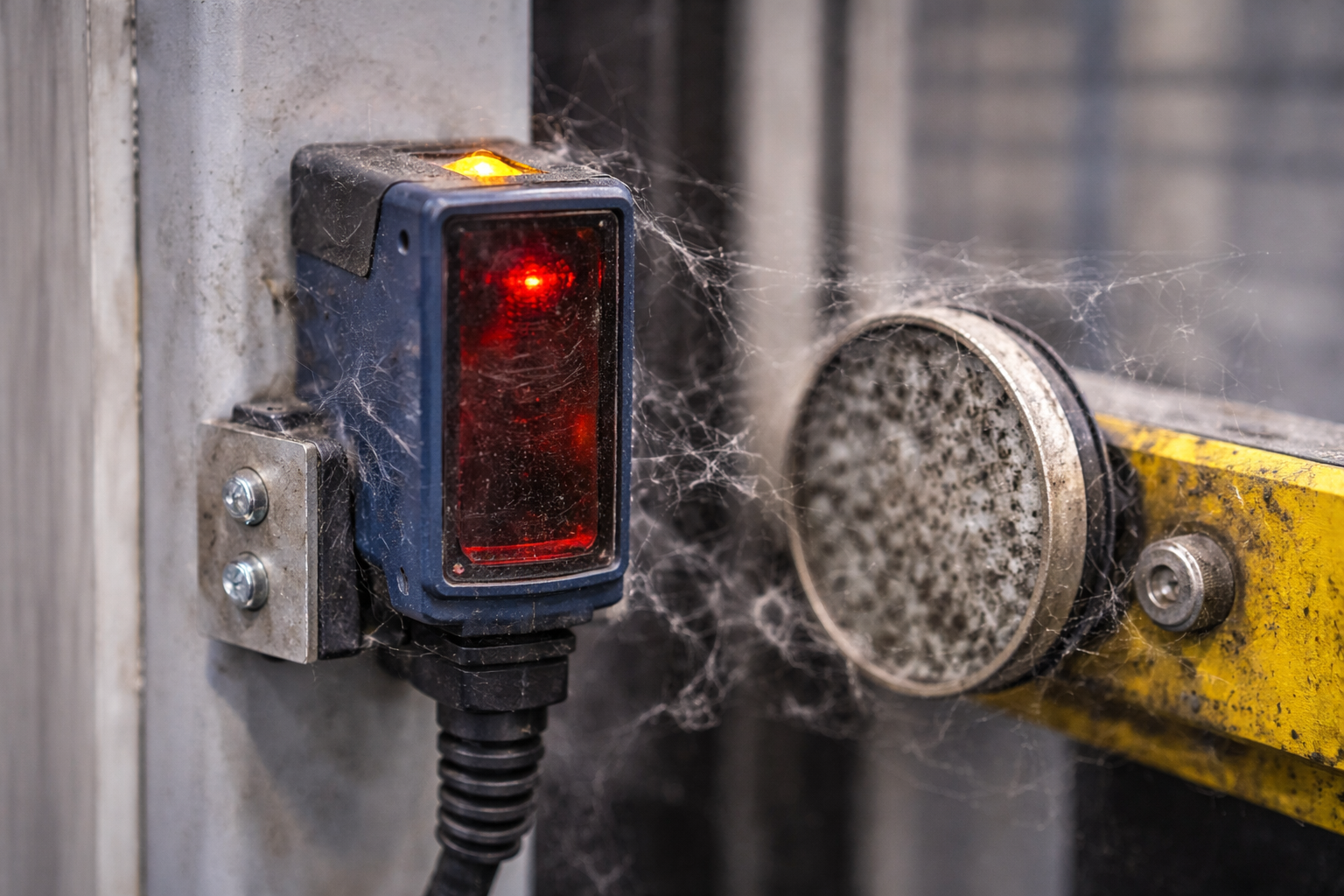

Dirty / misaligned sensor (photo-eye beam blocked, cycle halts)
Film threading/tension issues (film break detect / tension trip)

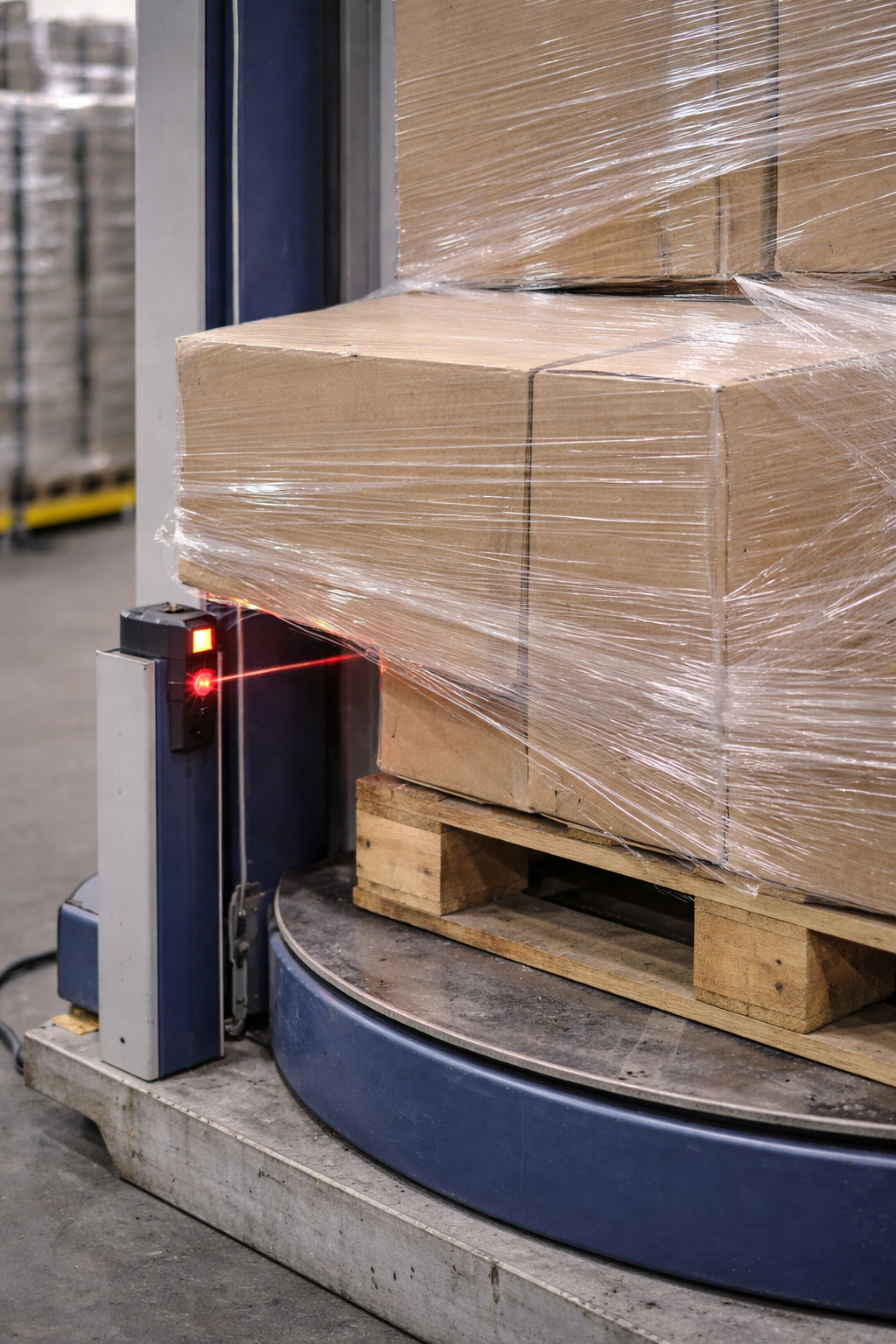

Load overhang / instability triggering safety beams or protection stops
Does This Look Familiar?
Common symptoms when a wrapper stops mid-cycle:
- Cycle starts normally then stops at the same point repeatedly
- Stops randomly mid-wrap (sometimes after a reset it runs once)
- Stops when the carriage moves up/down (position/safety input changes)
- Stops as film stretches or clamps (film break / tension detection)
- Stops with no obvious mechanical issue (often safety/sensor related)
Typical Causes Behind This Fault
- Safety circuit interruption (E-stop, gate switch, light curtain/beam broken)
- Photo-eye / sensor blocked or dirty (load overhang, debris, misalignment)
- Film break / film detect triggered (poor threading, snag, weak film, tension set too high)
- Carriage or position input fault (height sensor/encoder errors during up/down travel)
- Motor protection / inverter trip caused by overload, drag, or intermittent electrical fault
- Loose connections on safety/sensor wiring creating intermittent stops
- Load instability (product shifting / catching film, triggering protection response)
When It Needs An Engineer
If the wrapper repeatedly stops part-way through a cycle and won’t complete a wrap, it’s usually quicker to have the control logic and safety systems checked properly rather than restarting cycles or overriding alarms.
!
Safety circuit interruption during the wrap cycle
!
Photocell or position sensor being blocked or misaligned
!
Inconsistent signals from limit switches or encoders
!
Intermittent electrical faults halting the cycle
At this stage, structured fault-finding is usually more effective than repeated resets — particularly where safety circuits, sensors, or control inputs are involved. Mid-cycle stoppages often point to intermittent signals that require proper testing to identify. Our engineers work across all major pallet wrapper brands and control systems.
