Pallet Wrappers | Hayes Packaging

Pallet wrappers

Supplied, installed and looked after.

We carry 4 brands. That spread means we can match the right machine to your throughput, load type and workflow - then stay involved after it's in. Same engineers who sold it, commission it, service it and fix it.

1st
Annual service included, labour only, on every machine we supply.
4
Brands supplied - Robopac, Effe, SmartWasp and Extend.
UK
Engineer coverage for installation, commissioning and ongoing support.
1
Contact for supply, consumables, servicing and breakdowns.

All machines

Find the right wrapper.

Not sure which one fits? Tell us your throughput, load type and site setup - we'll advise honestly.

Robopac Ecoplat Plus pallet wrapper
Price on enquiry
1st service FREE

Ecoplat Plus

HPS recommends if

Pallets go out once or twice a day rather than all day. Reliable, uncomplicated, and easy for any operator to pick up.

Up to 25 pallets / hr
1500mm turntable
1500kg max load

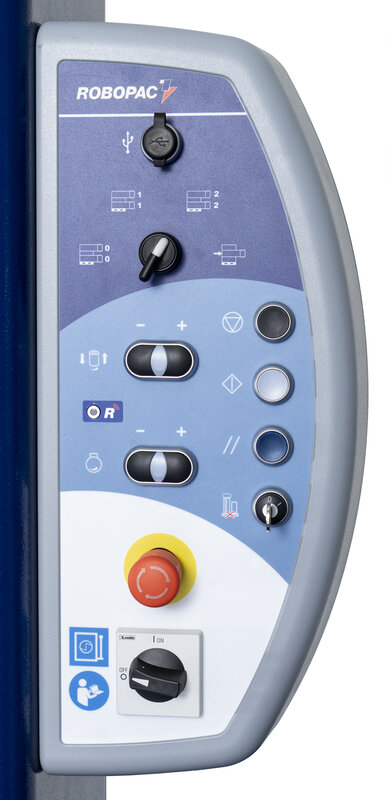

Ecoplat Plus control panel

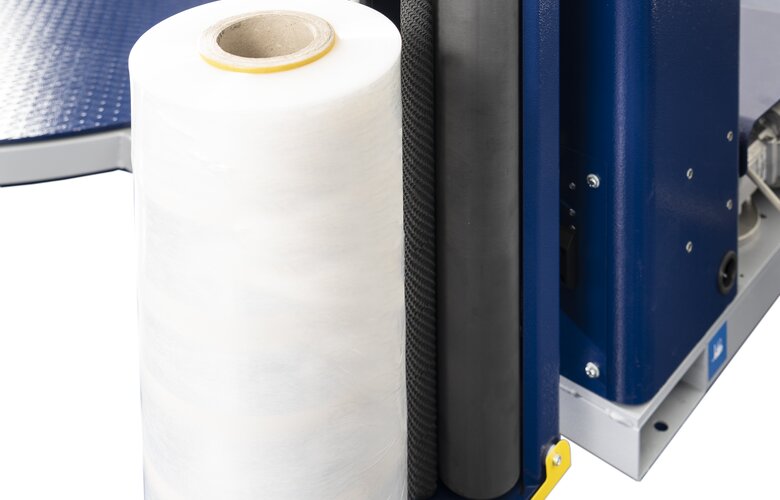

Ecoplat Plus FRD carriage detail
Watch it in action →

Key features

  • Automatic pallet height detection by photocell
  • Programmable wrapping cycles with recall
  • 150% mechanical pre-stretch as standard
  • Available in LP (low profile) for pallet truck access
  • R-Connect Industry 4.0 connectivity available as option

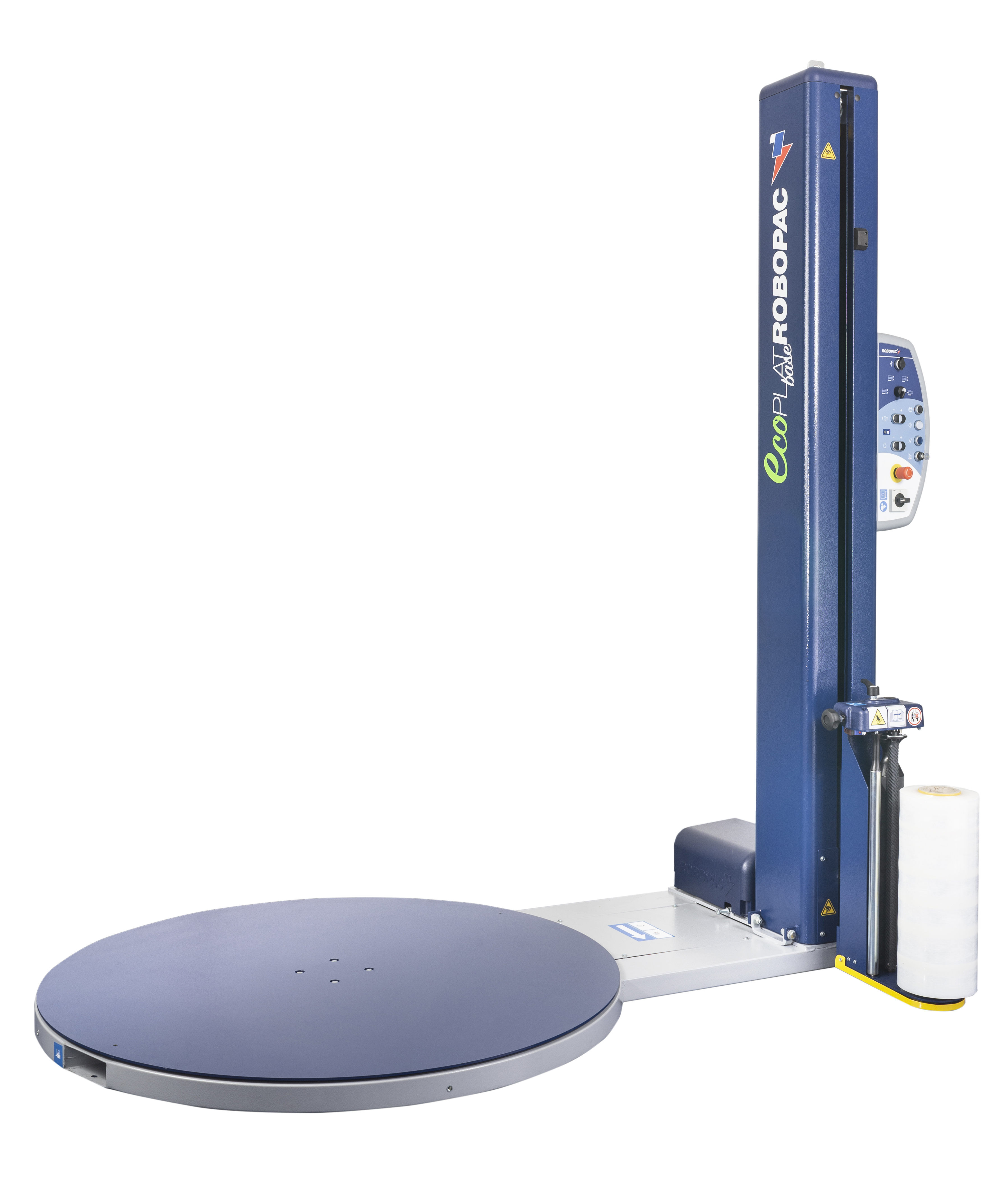

Robopac Ecoplat Plus FRD pallet wrapper
Price on enquiry
1st service FREE

Ecoplat Plus FRD

HPS recommends if

Film use is high enough that tension consistency matters. The FRD carriage keeps wrap force controlled across different load shapes - less waste, more uniform wrap.

Up to 25 pallets / hr
1500mm turntable
2000kg max load
Ecoplat FRD carriage detail
Ecoplat FRD control panel
Watch it in action →

Key features

  • FRD electromagnetic brake carriage - consistent film tension regardless of load shape
  • 3.5" LED graphic display with full parameter control
  • USB port for software updates and data download
  • 6 programmable wrapping cycles
  • R-Connect Industry 4.0 monitoring available as option
SmartWasp X100 pallet wrapper
Price on enquiry
1st service FREE

X100

HPS recommends if

You want Siemens PLC control, 12 preset recipes and a larger 1650mm turntable at a mid-range price. The step up in control reliability is tangible.

Up to 40 pallets / hr
1650mm turntable
2000kg max load

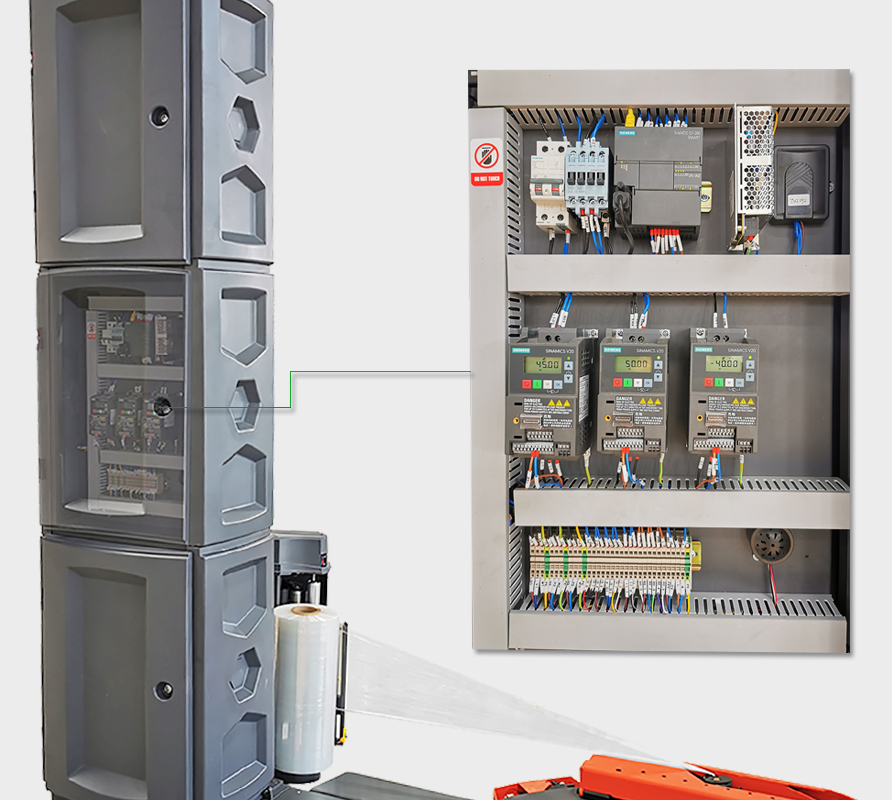

SmartWasp X100 PLC

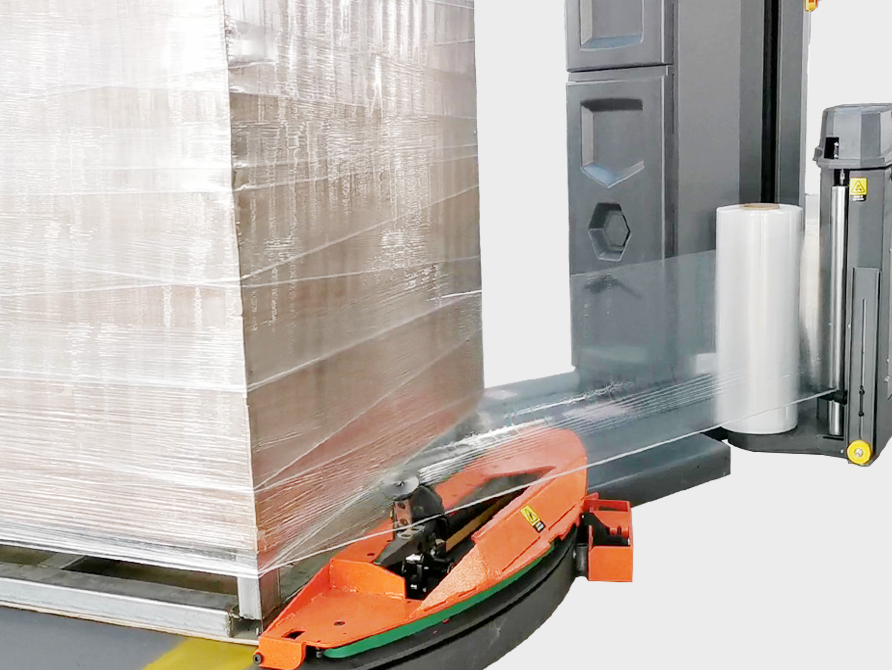

SmartWasp X100 cutting clamp
Watch it in action →

Key features

  • Siemens PLC and Siemens inverter throughout
  • 12 memory recipes for different pallet profiles
  • 250% motorised pre-stretch as standard
  • Auto film cutting (X100s) or auto cut and clamp with roping device (X100a)
  • Remote control start as standard on X100a

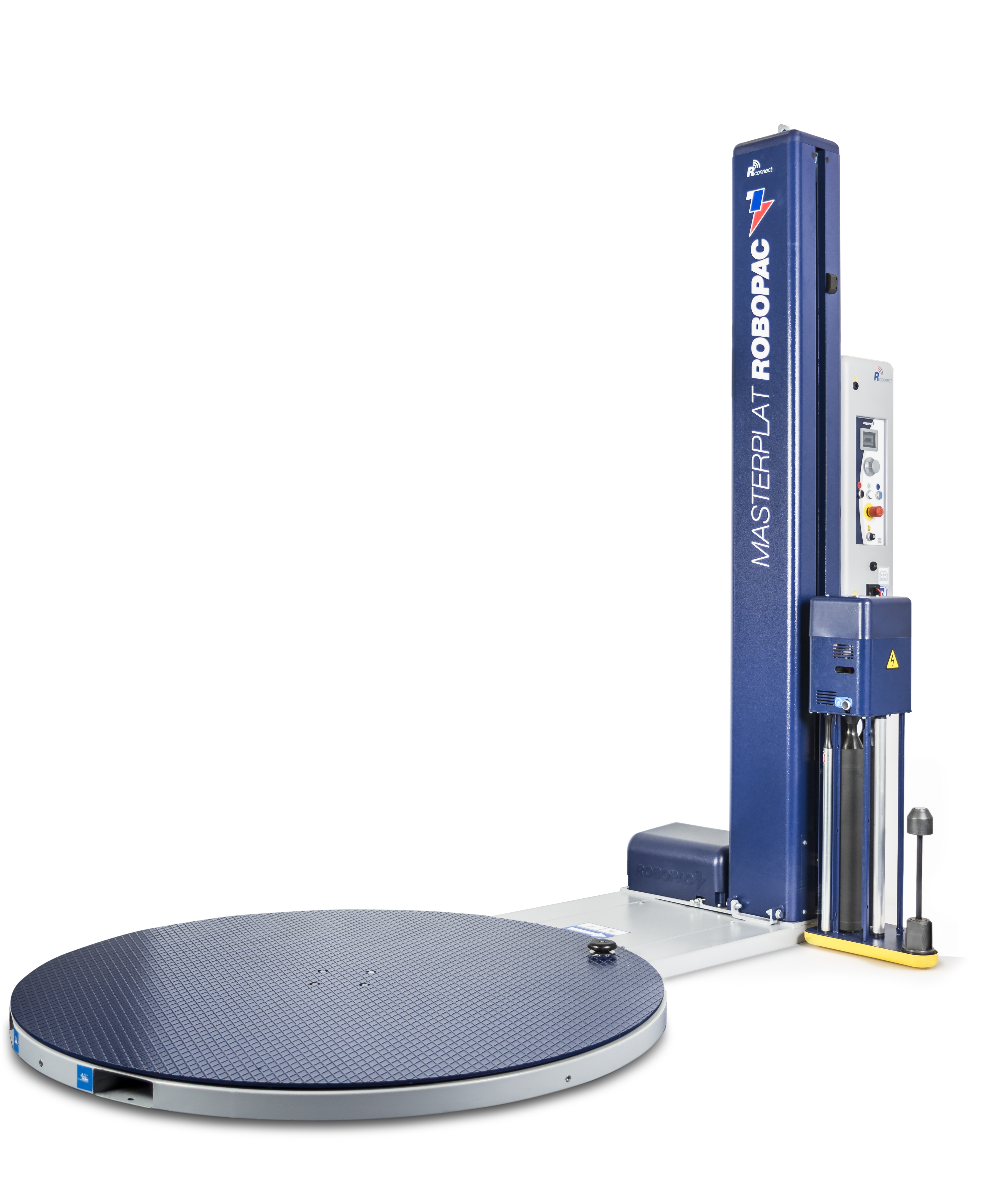

Robopac Masterplat Plus pallet wrapper
Price on enquiry
1st service FREE

Masterplat Plus

HPS recommends if

Throughput is higher or loads are heavier than the Ecoplat handles comfortably. 2000kg capacity and 250% fixed pre-stretch cut film consumption significantly.

1650mm turntable
2000kg max load
250% pre-stretch
Masterplat Plus FRD carriage
Masterplat Plus control panel
Watch it in action →

Key features

  • 250% fixed pre-stretch (PGS carriage) standard - real film savings at volume
  • 3.5" colour graphic display with jog parameter selector
  • 5-12 rpm turntable, 1.4-4 m/min carriage speed
  • Up to 2200mm wrap height standard, 2400/2800/3100mm optional
  • R-Connect remote monitoring available as option

Turntable options

1650mm std 1800mm opt

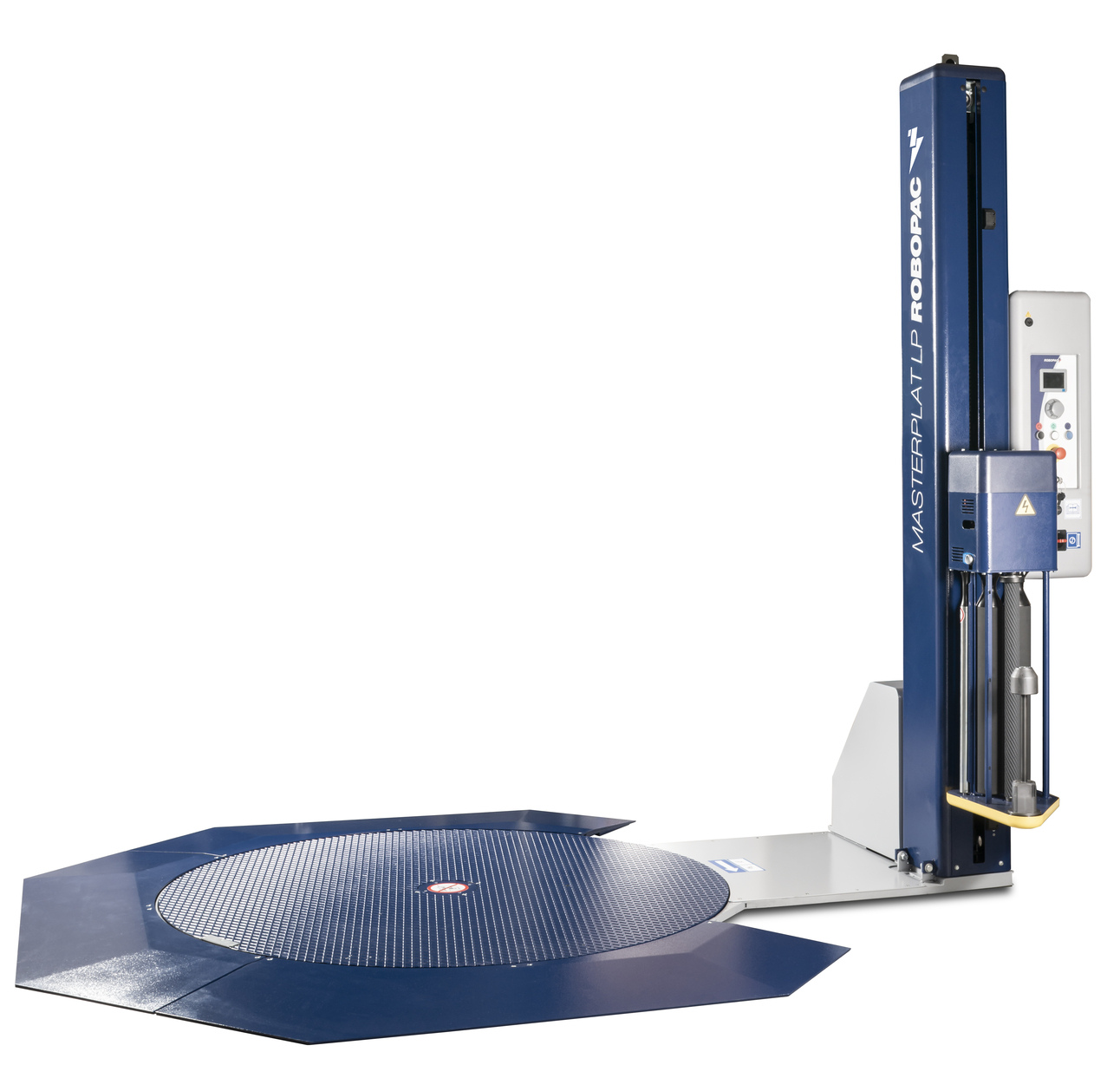

Robopac Masterplat Plus LP pallet wrapper
Price on enquiry
1st service FREE

Masterplat Plus LP

HPS recommends if

Forklifts are loading the machine rather than pallet trucks. The 30mm thin turntable means no ramp required - fork loads directly without clearance issues.

1650mm turntable
2000kg max load
30mm table height

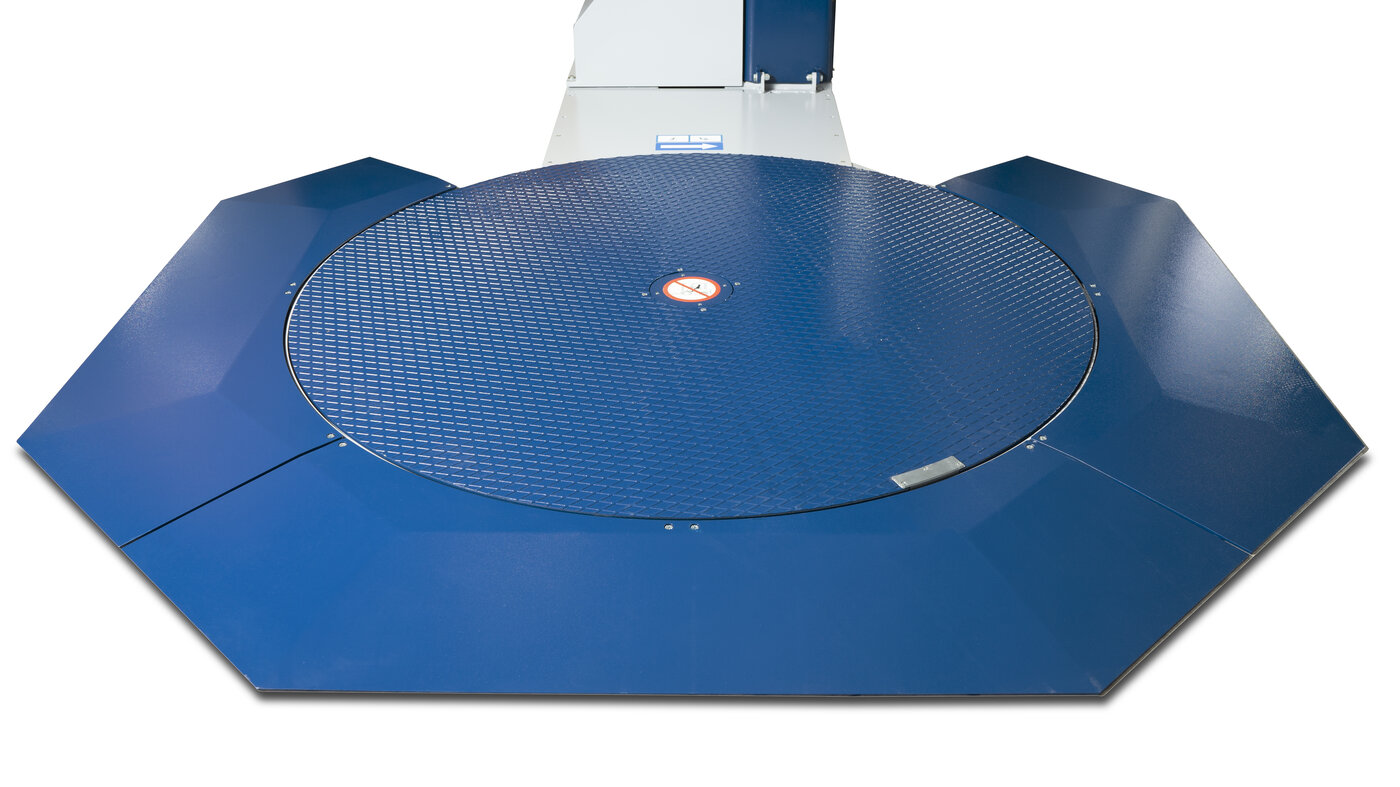

Masterplat Plus LP ramp

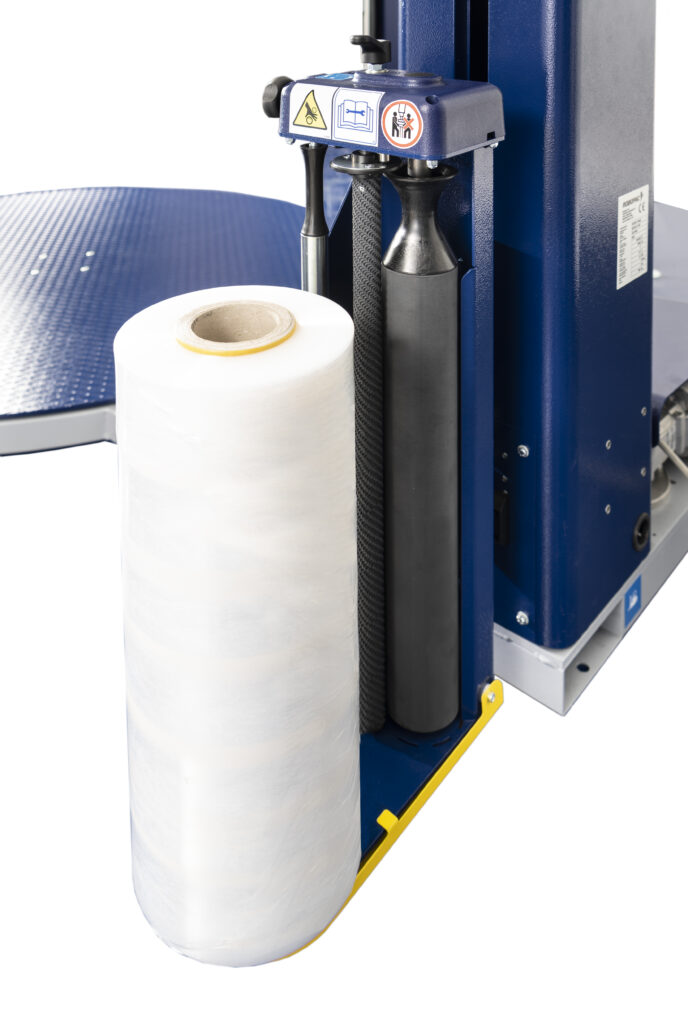

Masterplat Plus FRD carriage
Watch it in action →

Key features

  • 30mm thin turntable - no ramp needed, direct forklift loading
  • 5-12 rpm turntable speed, 1.4-4 m/min carriage speed
  • Film carriage options: FRD, FR or PGS (250% pre-stretch)
  • Up to 2200mm wrap height standard
  • R-Connect remote monitoring available as option

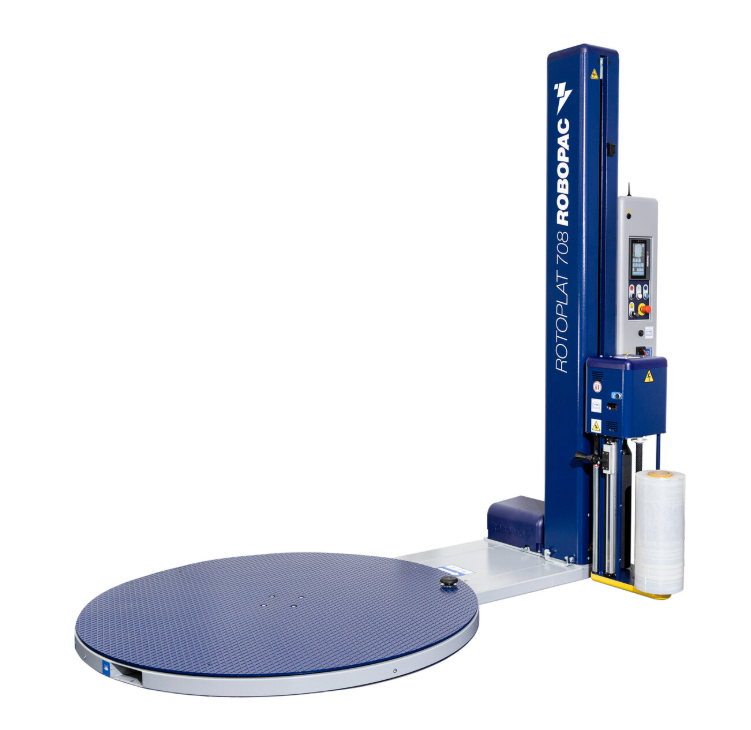

Robopac Rotoplat pallet wrapper
Price on enquiry
1st service FREE

Rotoplat

HPS recommends if

You want full control over how each pallet wraps. Variable pre-stretch up to 400%, 12 programme slots and CUBE Technology for load-specific adjustment.

1650mm turntable
2000kg max load
Up to 400% pre-stretch

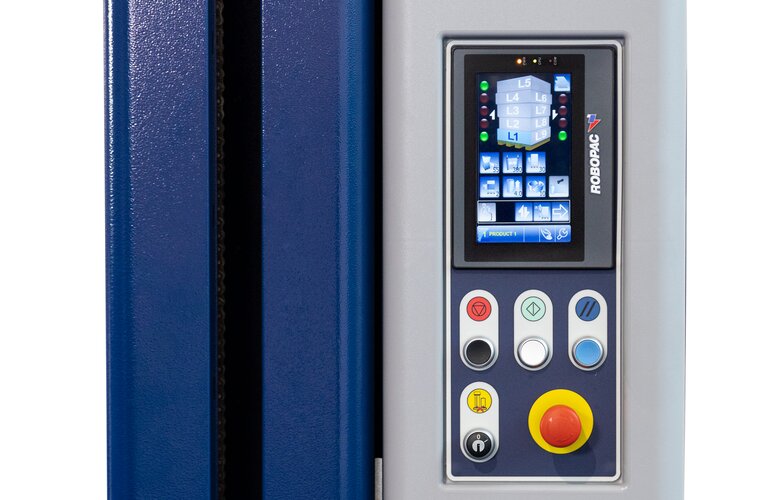

Rotoplat control panel
Rotoplat FRD carriage detail
Watch it in action →

Key features

  • CUBE Technology - variable pre-stretch 150-400% adjustable from panel
  • 7" colour touch screen control panel, 12 programme slots
  • 5-12 rpm turntable, 1.5-5.5 m/min carriage speed
  • Roping device available for pallet stabilisation
  • Up to 2200mm wrap height standard, 2400/2800/3100mm optional
  • R-Connect remote monitoring available as option

Turntable options

1650mm std 1800mm opt

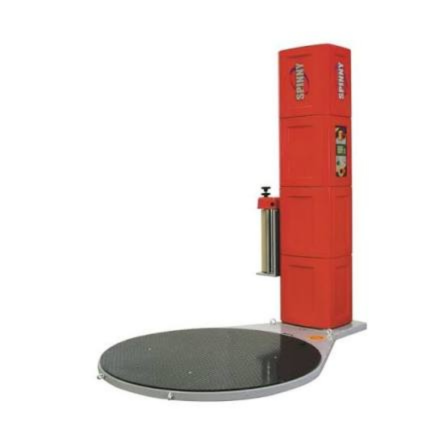

Effe Spinny S140 Plus pallet wrapper
Price on enquiry
1st service FREE

Spinny S140 Plus

HPS recommends if

You need a dependable entry-level semi-automatic with a simple control panel. Low-to-mid throughput, standard pallet sizes, mechanical film brake.

1500mm turntable
1200kg max load
2100mm max height

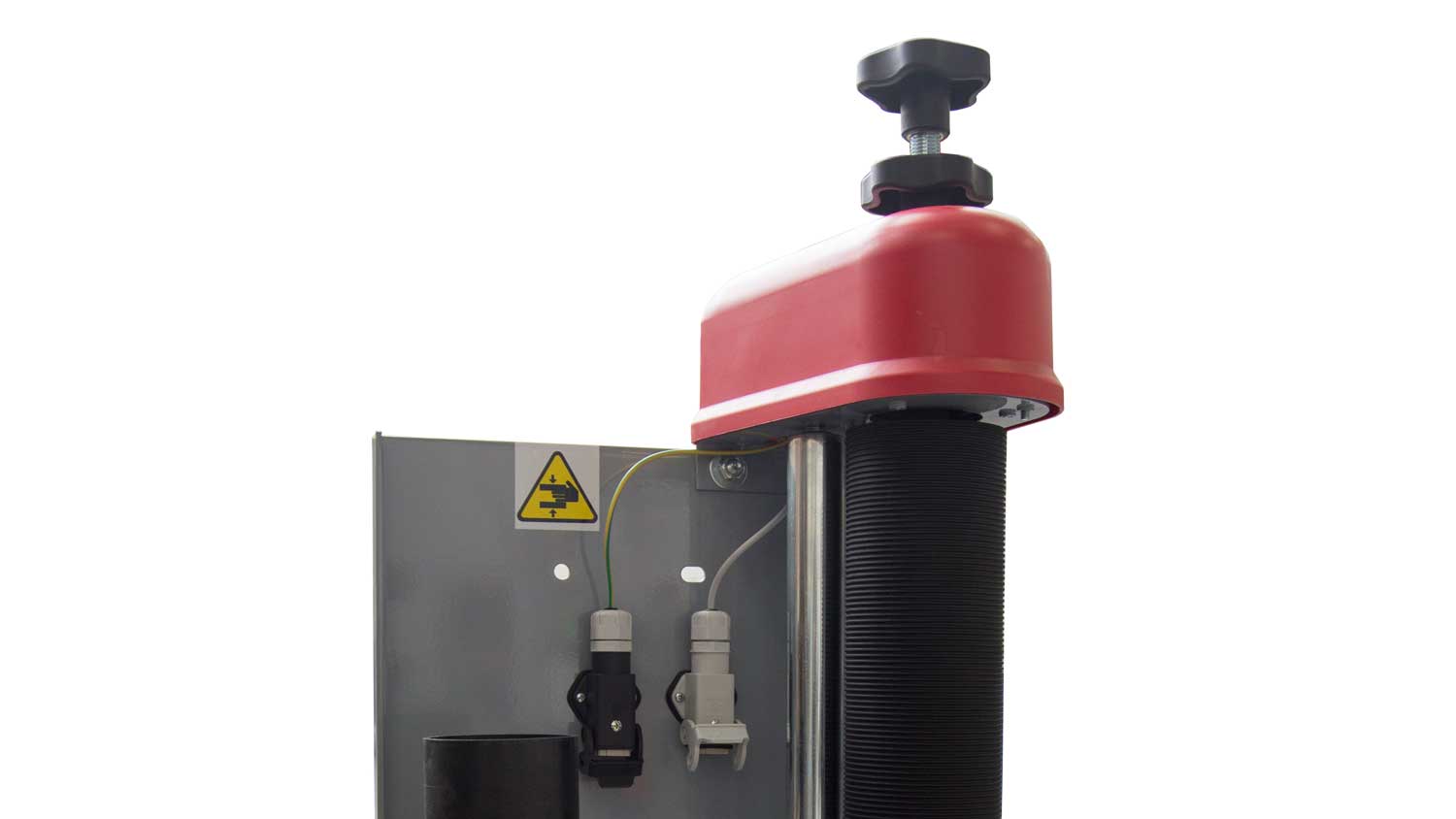

Spinny S140 Plus film carrier

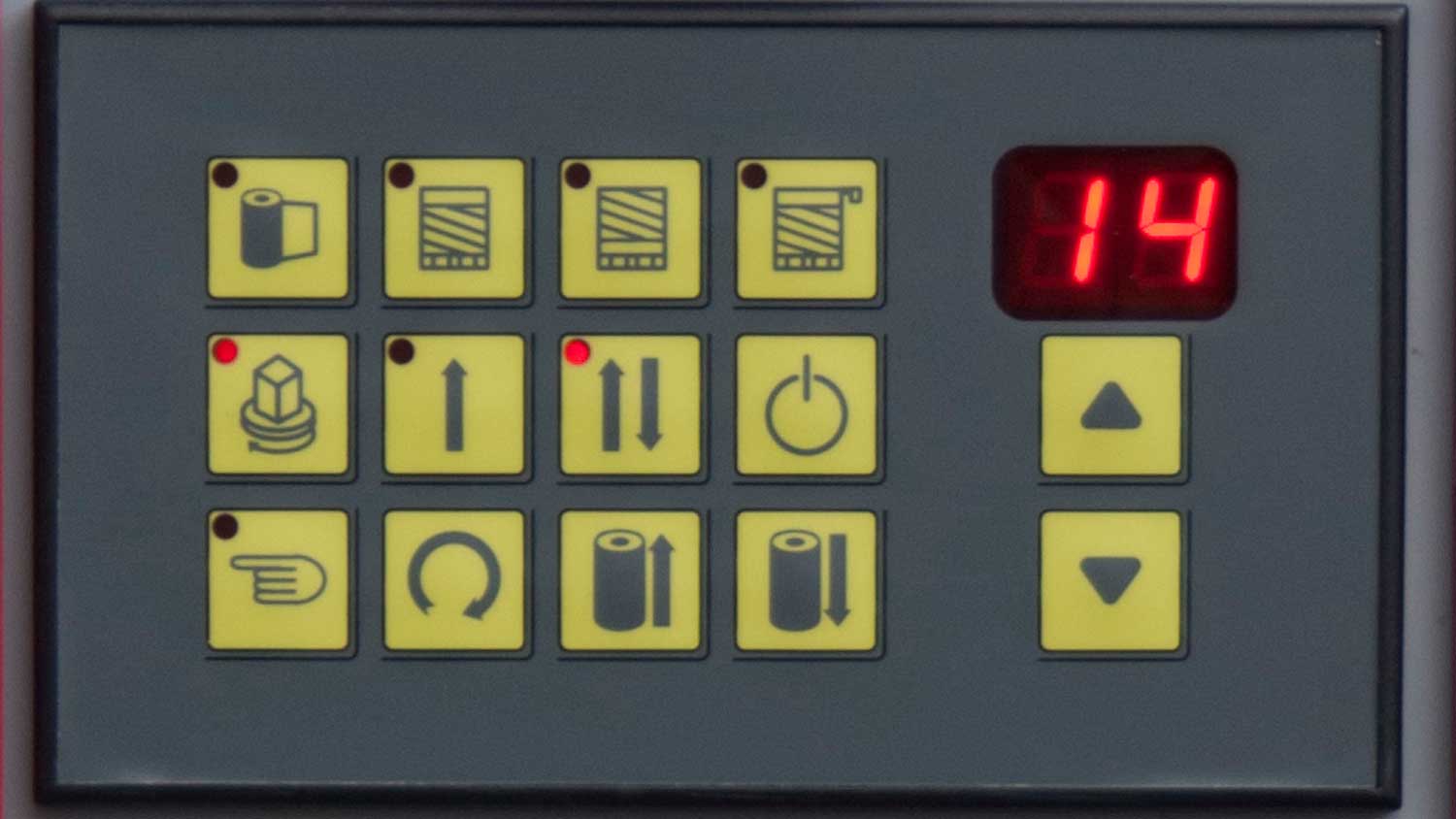

Spinny S140 Plus control panel
Watch it in action →

Key features

  • Mechanical brake for film tensioning
  • Pallet height detected by photocell up to 2100mm
  • Table rotation 5-12 rpm regulated by inverter
  • 4 programmable wrapping cycles
  • Up to 3 years warranty
Effe Spinny S140 Advanced pallet wrapper
Price on enquiry
1st service FREE

Spinny S140 Advanced

HPS recommends if

Same throughput as the S140 Plus but the electromagnetic brake gives more consistent film tension across varying load shapes and film grades.

1500mm turntable
1200kg max load
2100mm max height
Spinny S140 Advanced film carrier
Spinny S140 Advanced control panel
Watch it in action →

Key features

  • Electromagnetic brake for film tensioning - more consistent tension than mechanical brake
  • Pallet height detected by photocell up to 2100mm
  • Table rotation 5-12 rpm regulated by inverter
  • 4 programmable wrapping cycles
  • Up to 3 years warranty

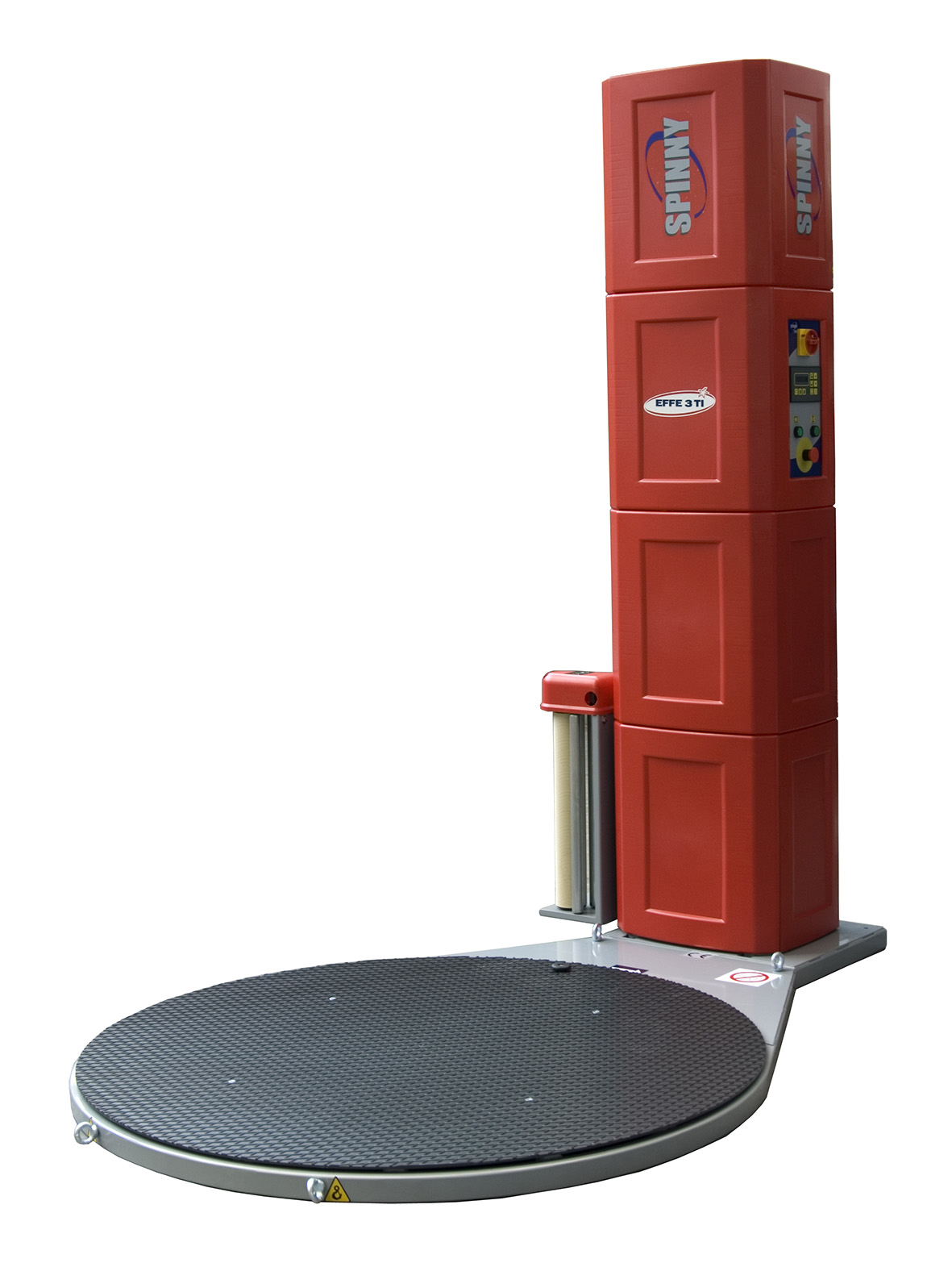

Effe Spinny S200 pallet wrapper
Price on enquiry
1st service FREE

Spinny S200

HPS recommends if

You want more programme flexibility than the S140. Ten wrapping cycles and electromagnetic tension control suits operations running mixed pallet profiles.

4-12 rpm table speed
2100mm max height
10 programmes
Spinny S200 control panel

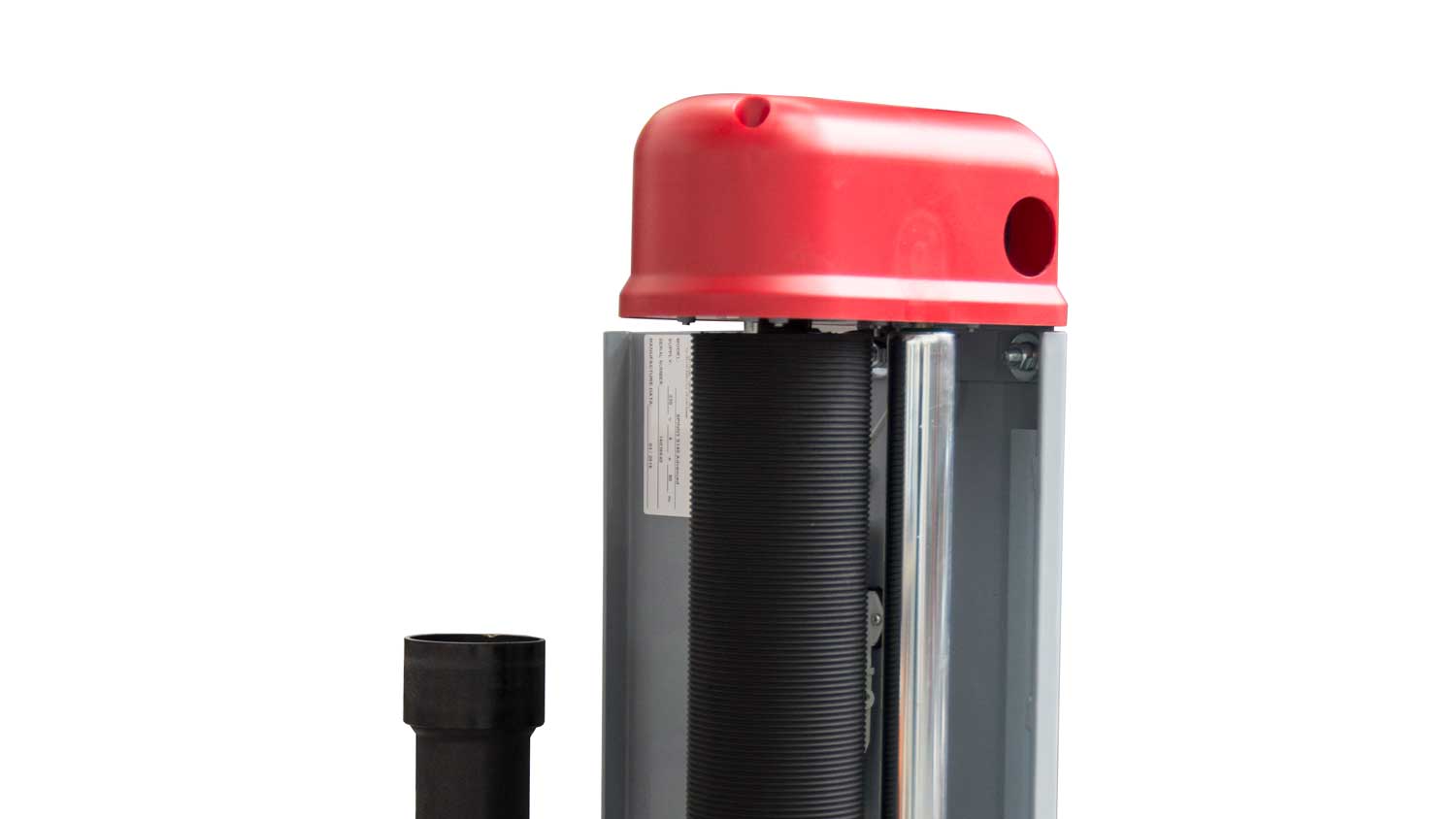

Spinny S200 film carrier
Watch it in action →

Key features

  • Electromagnetic brake for film tensioning
  • 10 password-protected wrapping cycles
  • Table rotation 4-12 rpm regulated by inverter
  • Pallet height up to 2100mm detected by photocell
  • Separate programming of high and low reinforcement wraps
  • Up to 3 years warranty

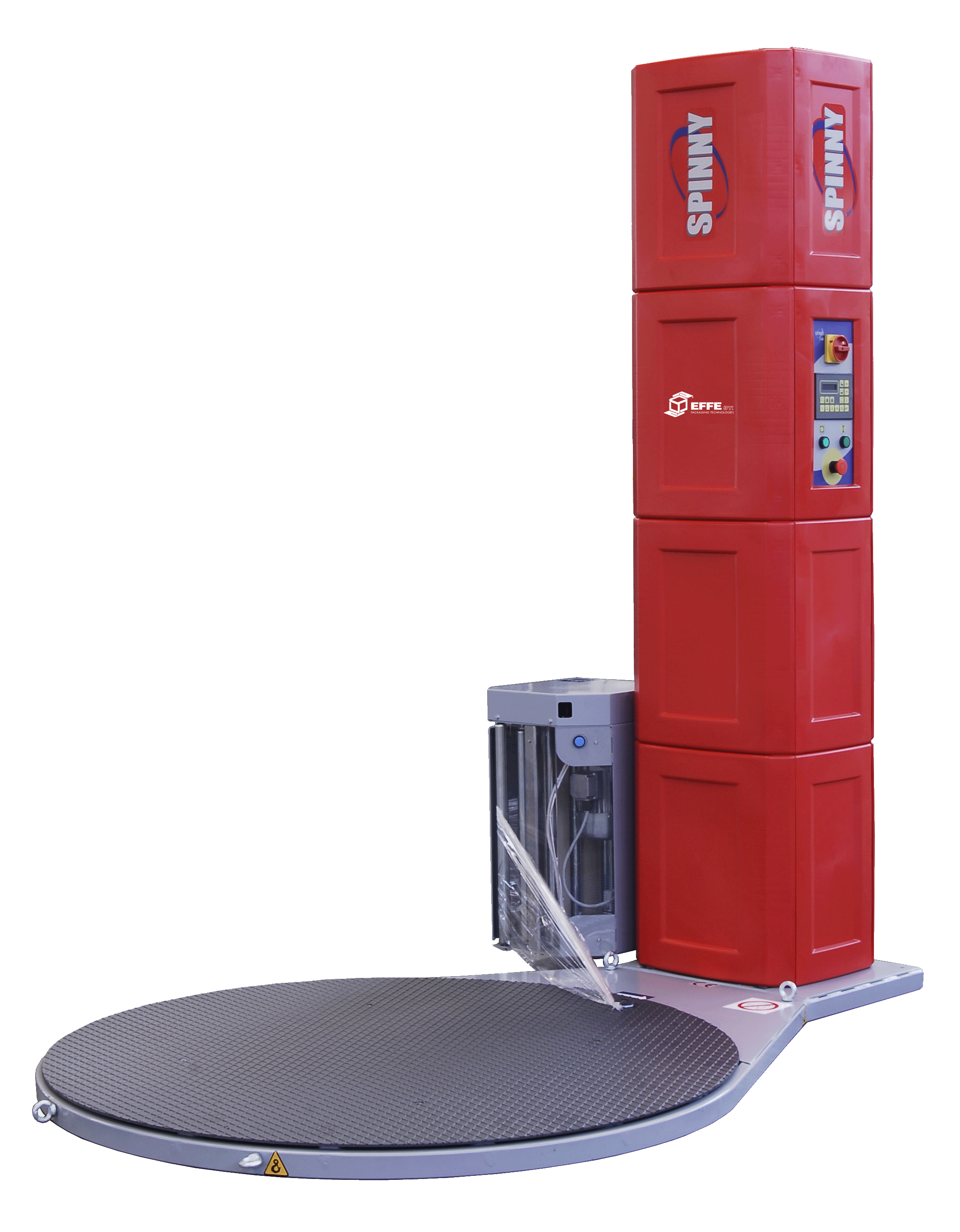

Effe Spinny S300 pallet wrapper
Price on enquiry
1st service FREE

Spinny S300

HPS recommends if

Throughput and load weights are stepping up from the S200. Motorised pre-stretch up to 400% makes a real difference to film consumption at volume.

1500mm turntable
2000kg max load
Up to 400% pre-stretch
Spinny S300 control panel
Spinny S300 film carrier
Watch it in action →

Key features

  • Motorised pre-stretch up to 400% - significant film savings at volume
  • Table rotation 4-15 rpm regulated by inverter
  • Pallet height up to 2100mm detected by photocell (3100mm optional)
  • Film carrier fall prevention system
  • PLC controlled wrapping cycles
  • Up to 3 years warranty

Turntable options

1500mm std 1650mm opt 1800mm opt 2200mm opt

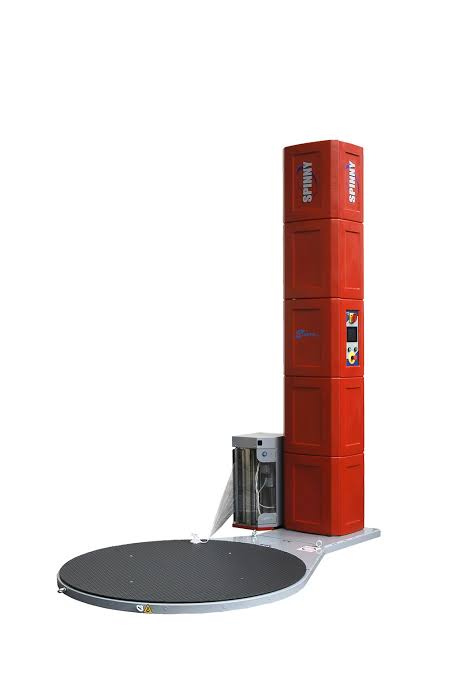

Effe Spinny S350 Touch pallet wrapper
Price on enquiry
1st service FREE

Spinny S350 Touch

HPS recommends if

You want the S300's capacity with touch screen control. Quicker to programme on the floor, with the same motorised pre-stretch and 2000kg load rating.

1500mm turntable
2000kg max load
Up to 400% pre-stretch

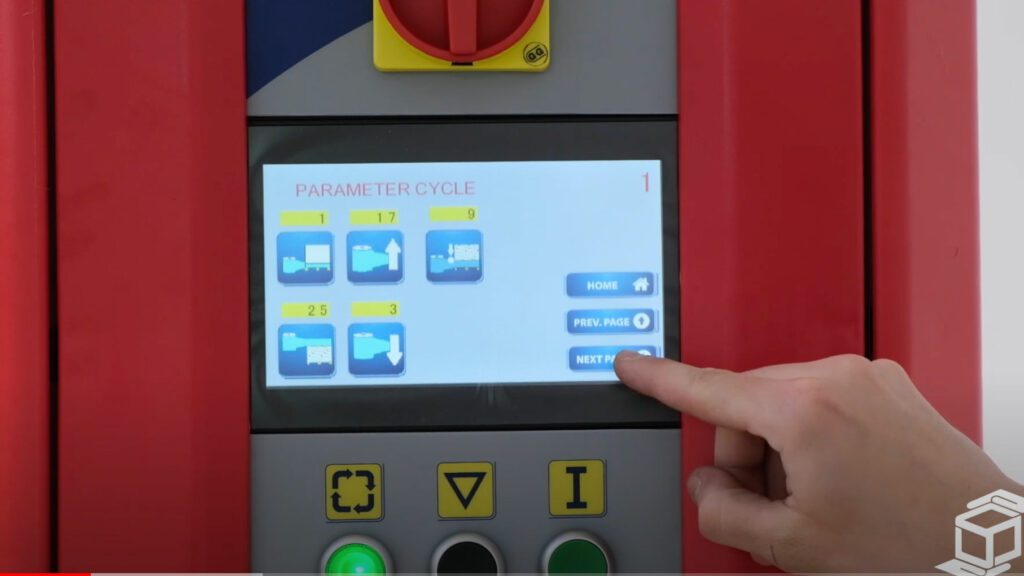

Spinny S350 Touch

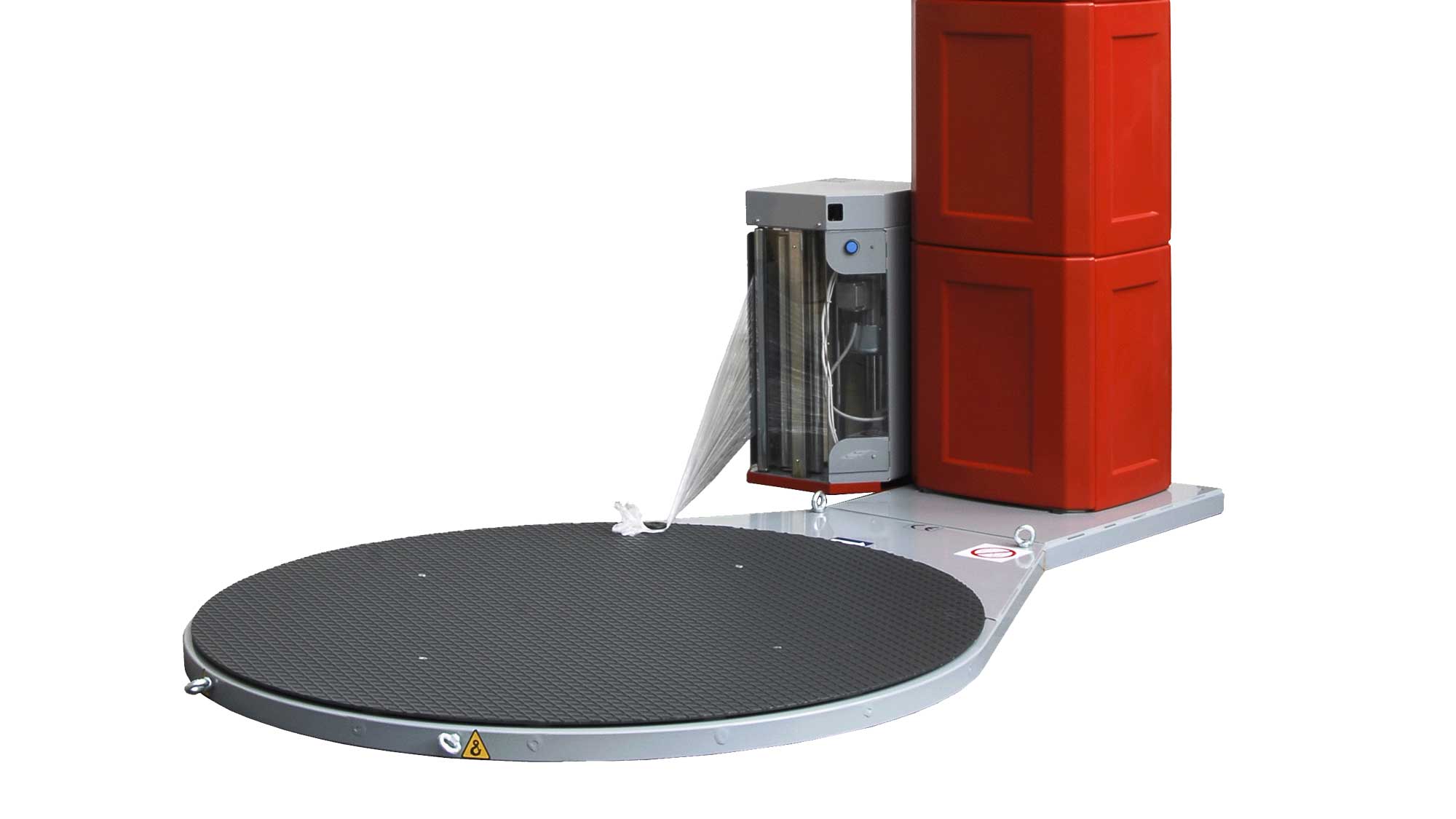

Spinny S350 Touch pre-stretch
Watch it in action →

Key features

  • Touch screen control panel for fast floor-level programming
  • Motorised pre-stretch up to 400%
  • Table rotation 5-15 rpm regulated by inverter
  • Pallet height up to 2100mm detected by photocell (3100mm optional)
  • PLC controlled, film carrier fall prevention
  • Up to 3 years warranty

Turntable options

1500mm std 1650mm opt 1800mm opt 2200mm opt

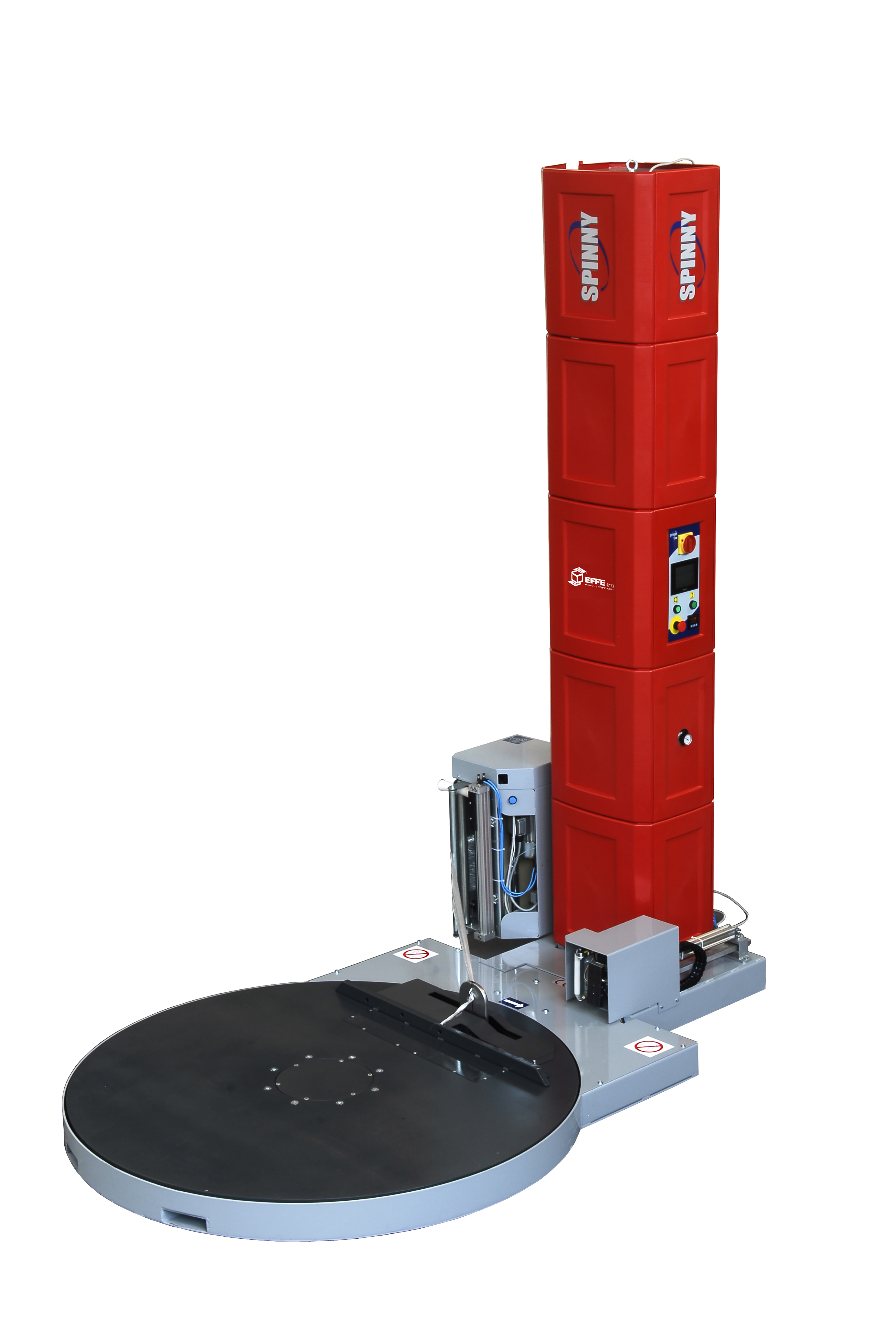

Effe Spinny S500 Touch pallet wrapper
Price on enquiry
1st service FREE

Spinny S500 Touch

HPS recommends if

Large pallets, heavy loads, high throughput. The 1800mm table handles bigger footprints and the automatic film cut and seal saves time on every cycle.

1800mm turntable
2000kg max load
Up to 400% pre-stretch

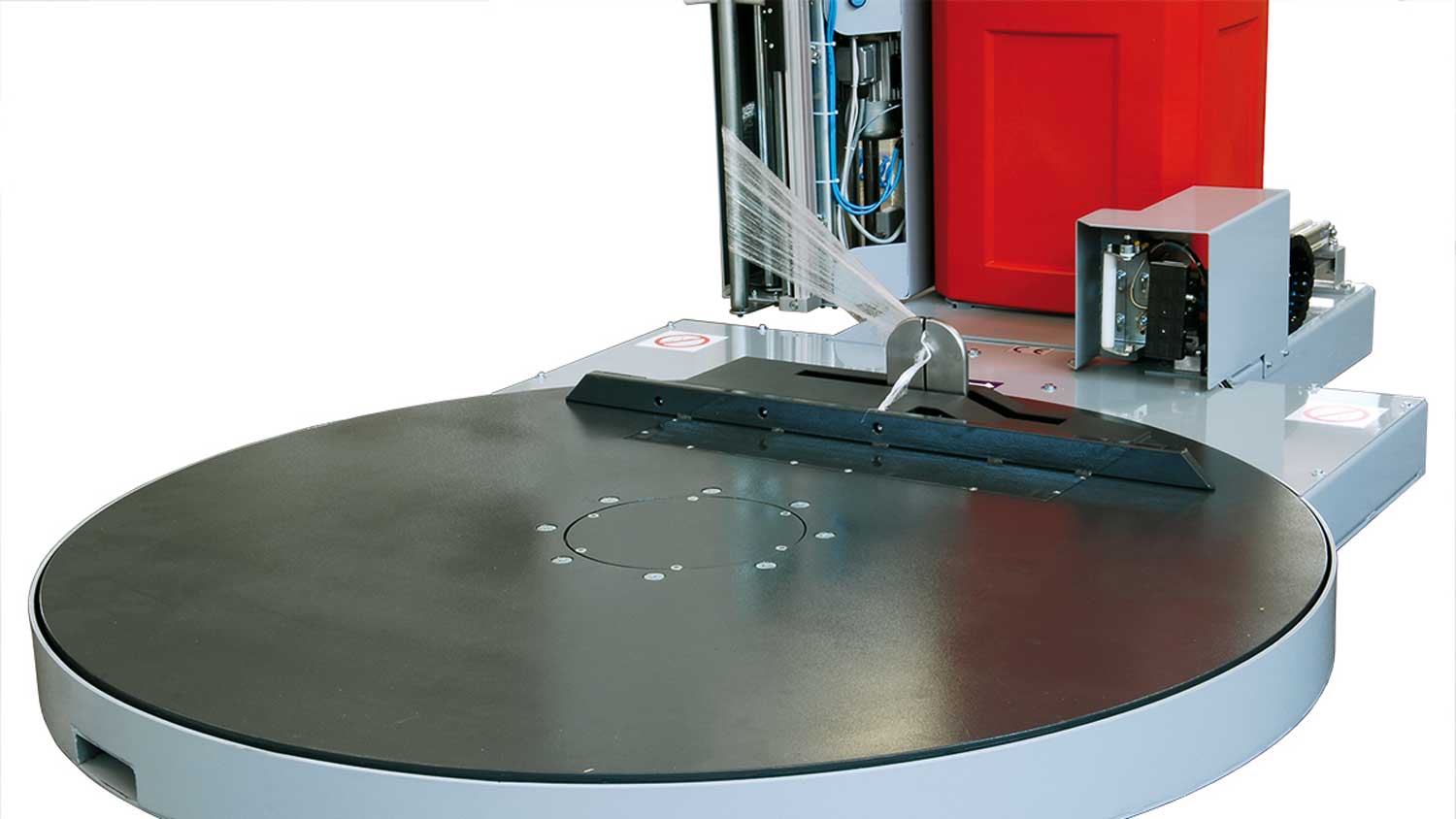

Spinny S500 Touch turntable

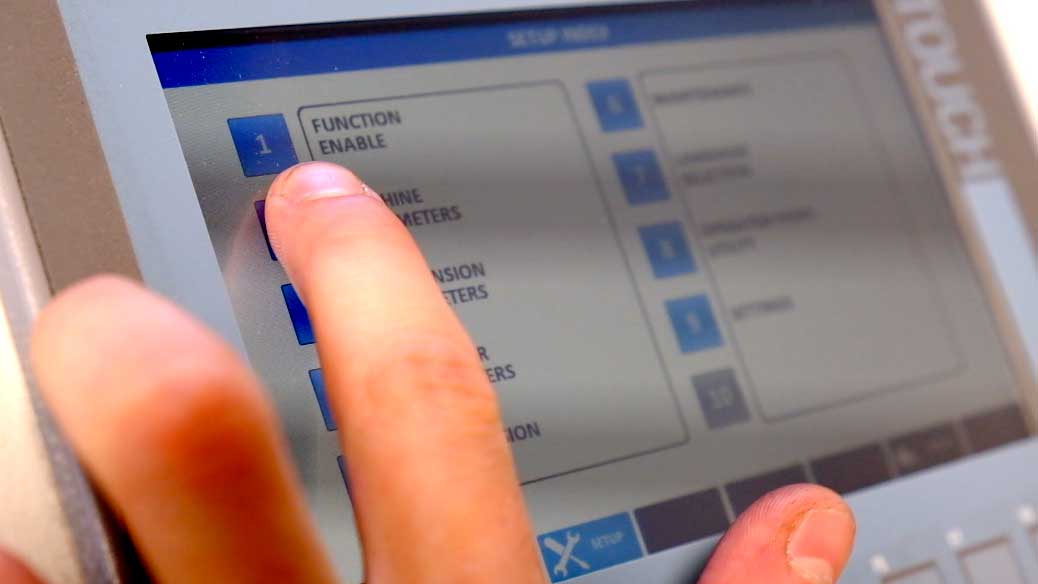

Spinny S500 Touch screen
Watch it in action →

Key features

  • 1800mm turntable for larger pallet footprints
  • Pre-stretch 300% standard, 400% optional (dual motor)
  • Touch screen control panel, 5-15 rpm table speed
  • Up to 2600mm wrap height detected by photocell
  • Automatic film stapling, cutting and sealing at end of cycle
  • Up to 3 years warranty

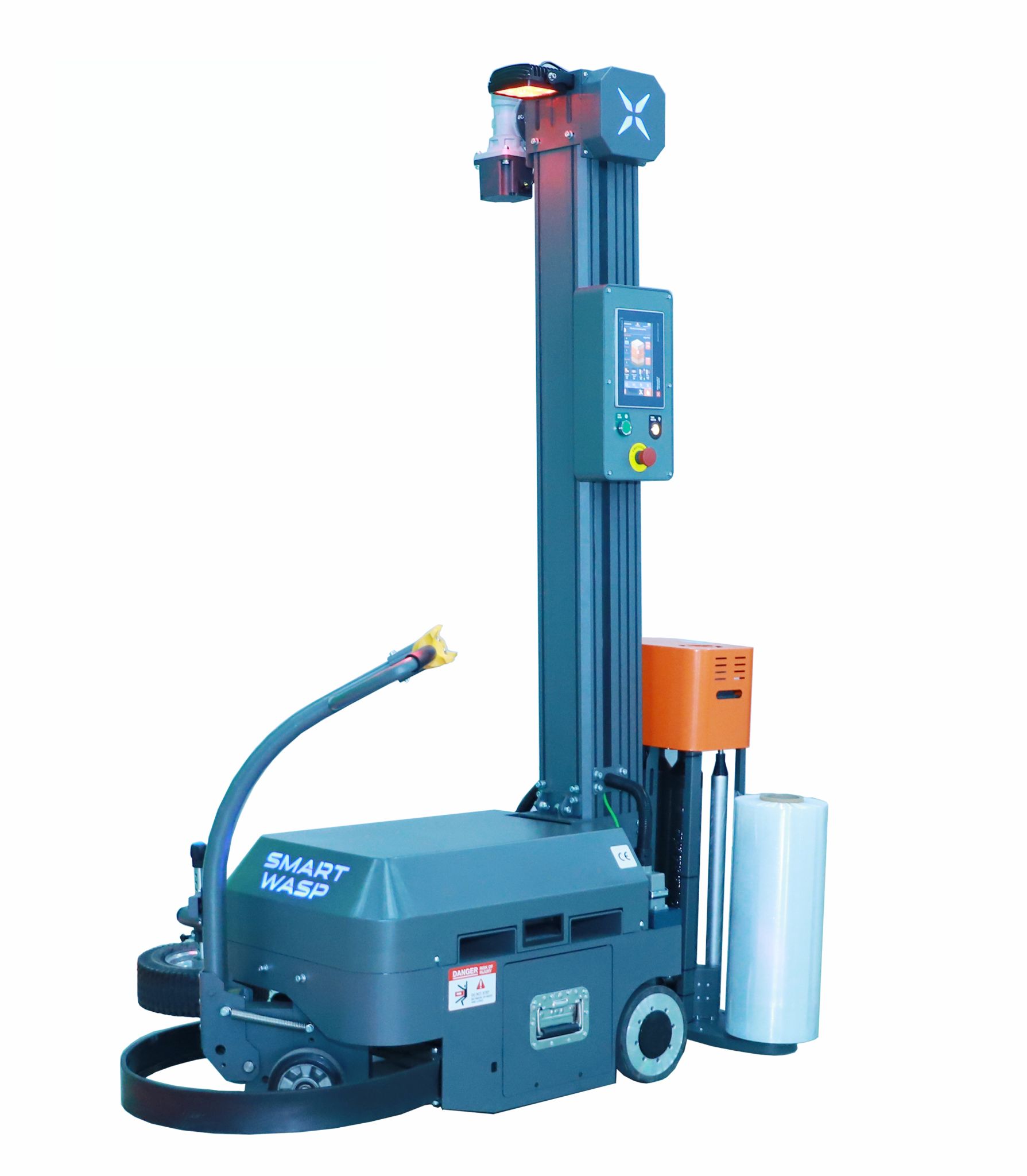

SmartWasp R600 robot pallet wrapper
Price on enquiry
1st service FREE

R600

HPS recommends if

Floor space is tight or your operation spans multiple bays. The R600 moves to the pallet rather than the other way around - no fixed footprint, 8 hours on a charge.

350% pre-stretch
8hr battery life
No limit pallet weight
Photo coming
Photo coming
Watch it in action →

Key features

  • Self-propelled robot - wraps the pallet in place, no turntable required
  • 350% power pre-stretch as standard
  • Up to 8 hours continuous operation on a single charge
  • Fast battery swap for continuous operation
  • Radar, mechanical and AI sensors for collision-free movement
  • No pallet size or weight restrictions

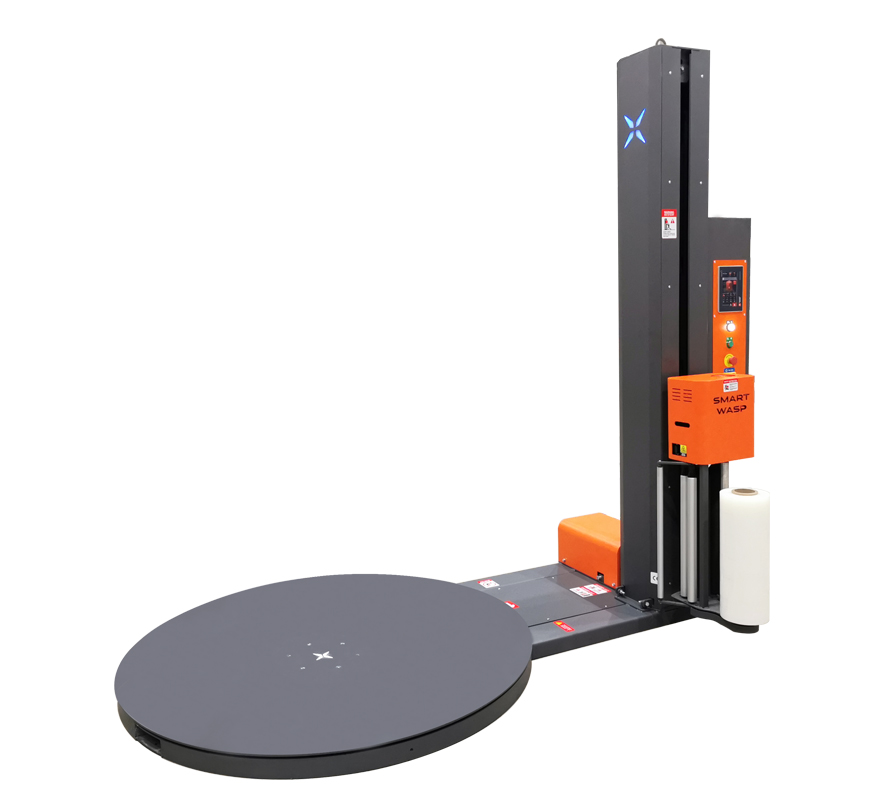

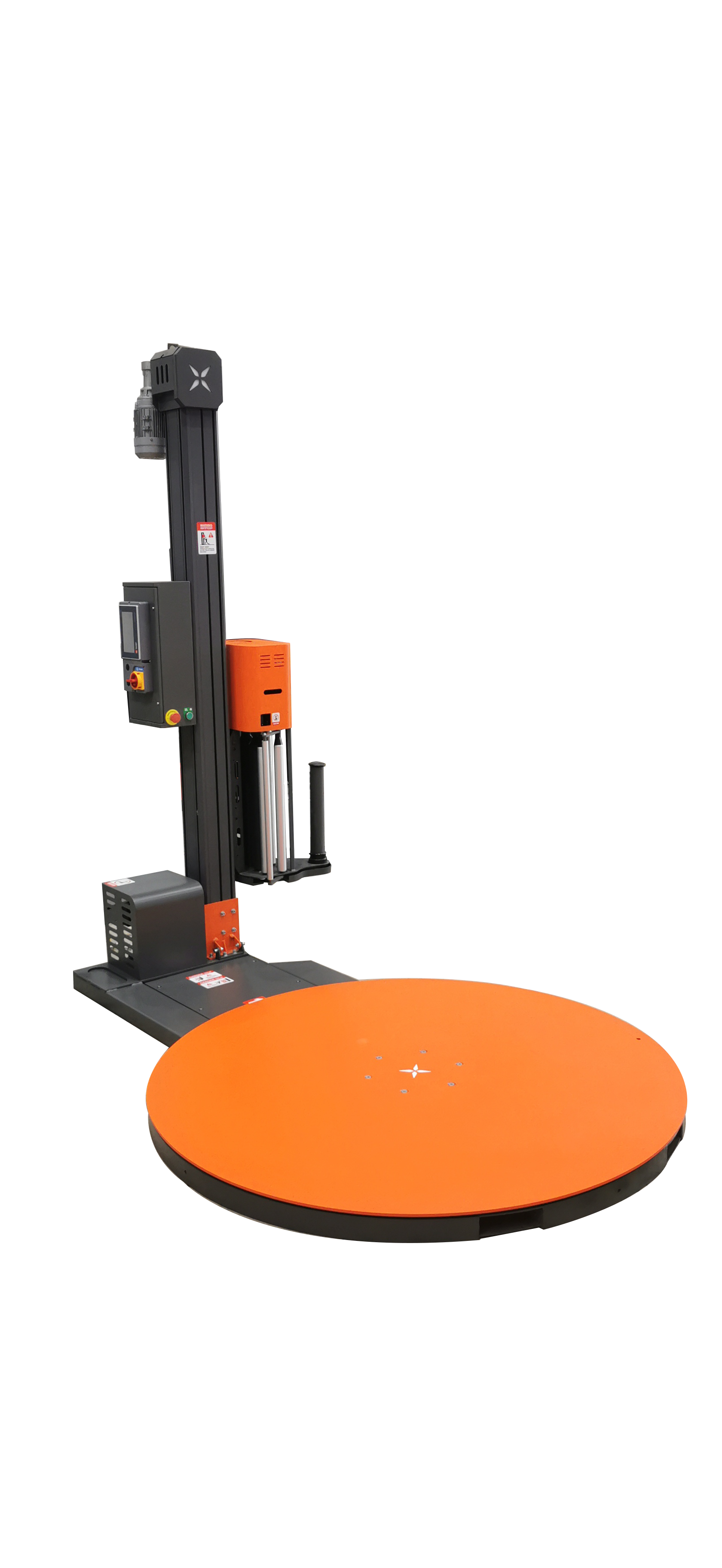

SmartWasp XOPS pallet wrapper
Price on enquiry
1st service FREE

XOPS

HPS recommends if

You want a reliable mid-range pre-stretch turntable at a competitive price. 300% stretch and 30 pallets per hour covers most standard light-to-medium operations.

Up to 30 pallets / hr
2268kg max load
300% pre-stretch

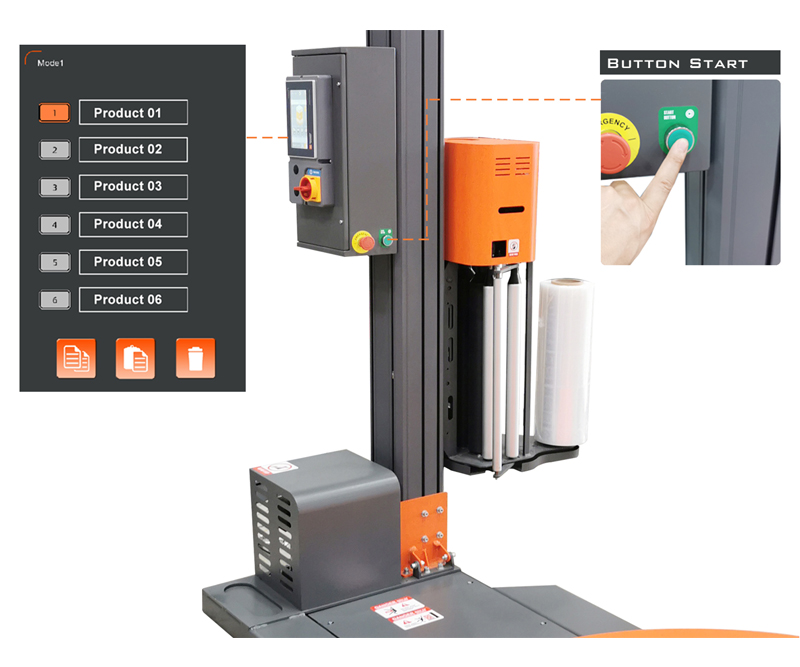

SmartWasp XOPS control panel

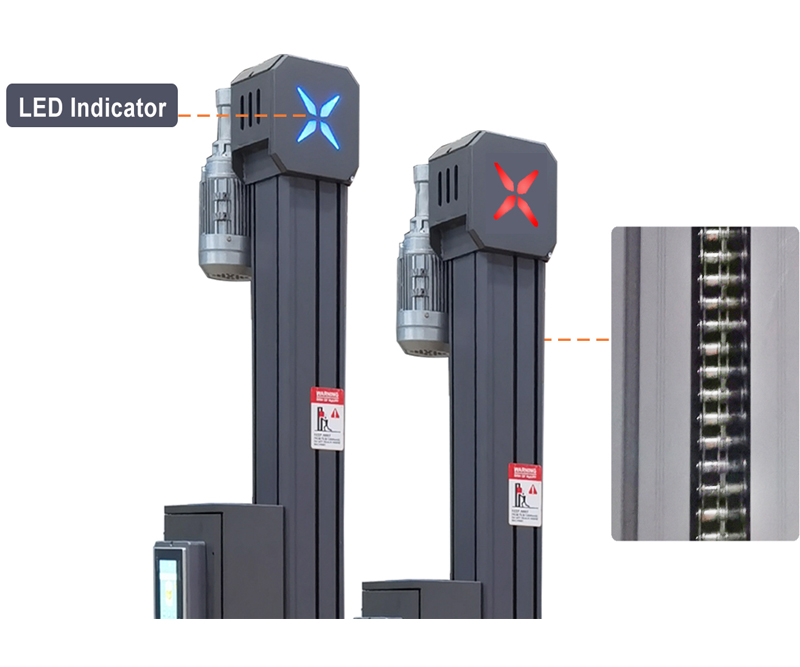

SmartWasp XOPS LED indicator
Watch it in action →

Key features

  • Power pre-stretch film carriage, 300% stretch ratio
  • 6-memory programme plus one-button start
  • PCB control system with LED status indicator
  • All-in-one alloy aluminium column
  • Up to 30 pallets per hour throughput

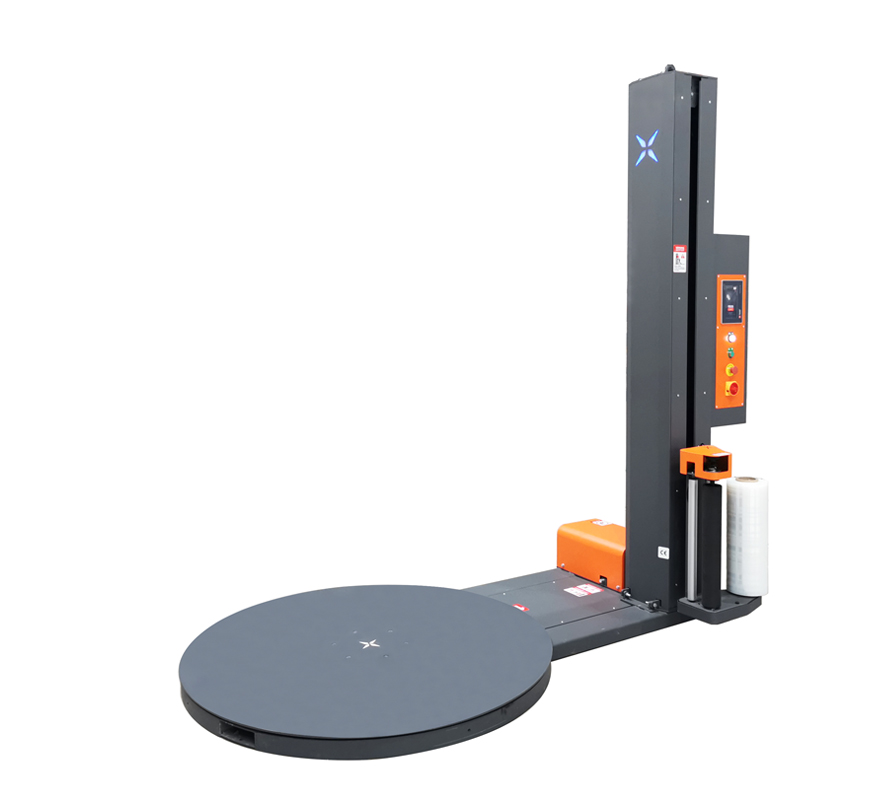

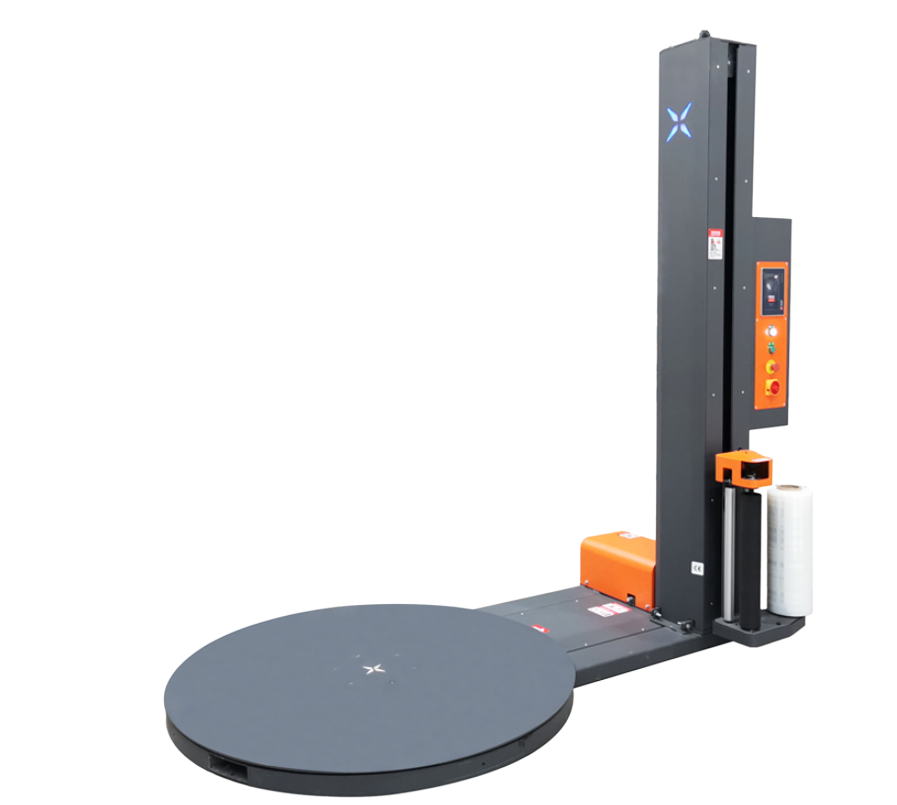

SmartWasp XOMS pallet wrapper
Price on enquiry
1st service FREE

XOMS

HPS recommends if

Volume is lower or budget is the main constraint. Mechanical stretch rather than power pre-stretch - simpler mechanism, lower entry price for basic wrapping requirements.

Up to 30 pallets / hr
2268kg max load
150% mech. stretch

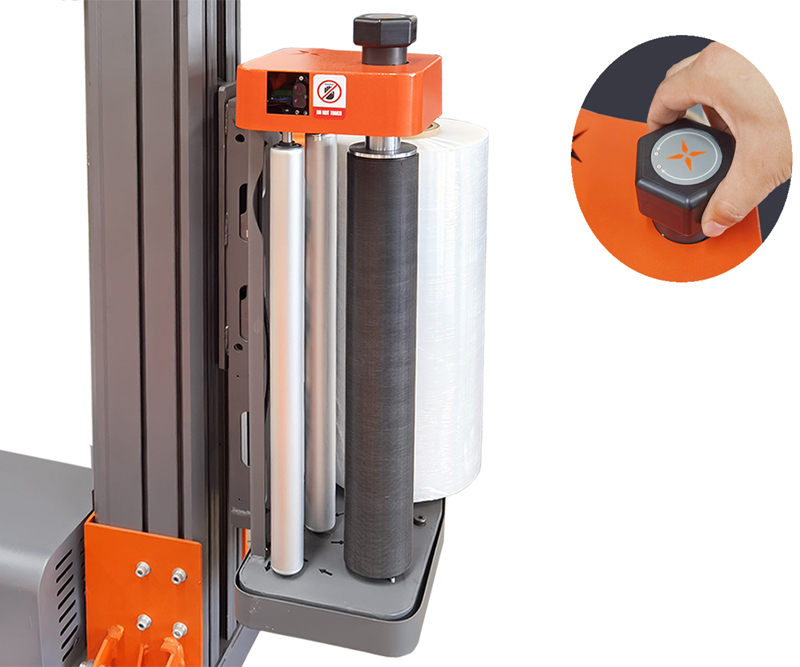

SmartWasp XOMS carriage

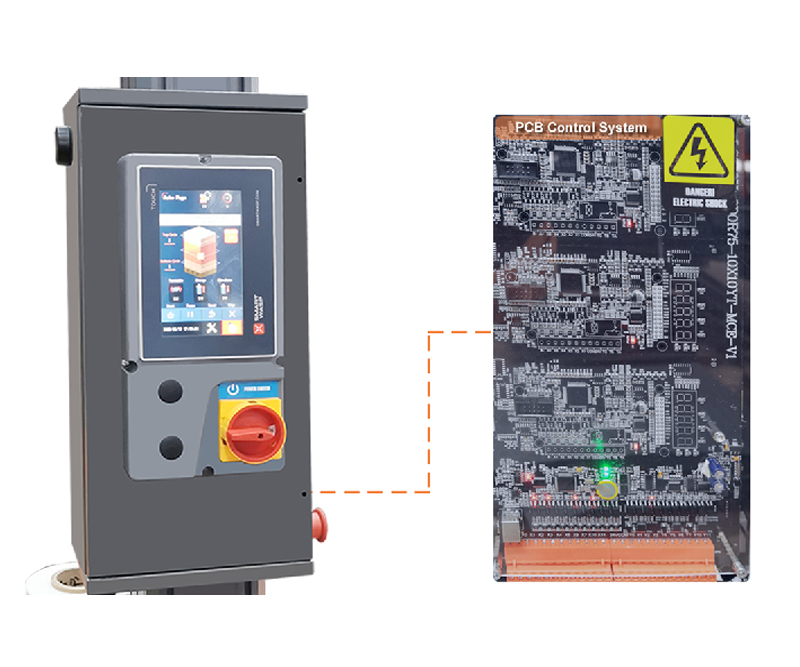

SmartWasp XOMS PCB
Watch it in action →

Key features

  • New generation mechanical resistance film carriage
  • 150% mechanical stretch ratio
  • 6-memory programme plus one-button start
  • PCB control system with LED status indicator
  • All-in-one alloy aluminium column
  • Up to 30 pallets per hour throughput

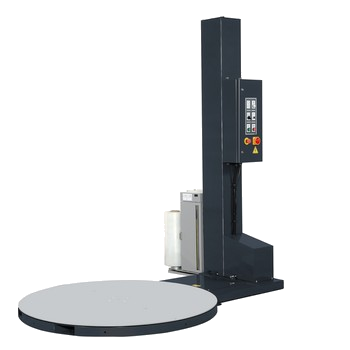

Extend TMD P46P pallet wrapper
Price on enquiry
1st service FREE

TMD P46P

HPS recommends if

You want 300% power pre-stretch at a sensible entry price. Extend's standard pre-stretch model covers most production requirements without the touch screen premium.

1500mm turntable
1650kg max load
300% pre-stretch
Extend TMD P46P
Extend TMD P46P carriage
Watch it in action →

Key features

  • 300% power pre-stretch as standard
  • 1500mm turntable, 10 RPM table speed
  • Up to 2200mm wrap height
  • 200-240V single phase power supply
  • Ramp, roping device and black film sensor available as options

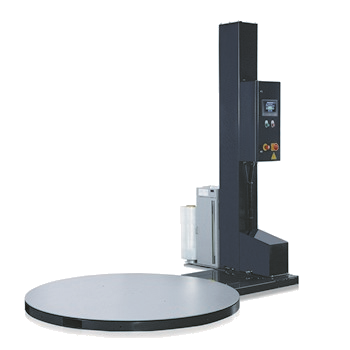

Extend TMD P46P Plus pallet wrapper
Price on enquiry
1st service FREE

TMD P46P Plus

HPS recommends if

Same as the P46P but with touch screen control and 12 RPM. Worth the step up if you're running different film types or changing programmes regularly.

1500mm turntable
1650kg max load
300% pre-stretch
Extend TMD P46P Plus
Extend TMD P46P Plus carriage
Watch it in action →

Key features

  • Touch screen control panel
  • 300% power pre-stretch as standard
  • 1500mm turntable, 12 RPM table speed
  • Up to 2200mm wrap height
  • 200-240V single phase power supply
  • Ramp, roping device and black film sensor available as options

What's included

The machine is one part of it.

Every machine we supply comes with the people to back it up. Delivery and installation are quoted separately - everything below comes with the machine as standard.

Commissioning

A qualified engineer sets the machine up on your site, tests it on your actual pallets and confirms it's running to spec before they leave.

Operator training

We train whoever operates the machine on handover - cycle selection, film loading, basic fault recognition. Your team runs it properly from day one.

1st annual service

Labour included on your first annual service. We'll contact you when it's due.

Labour only - parts extra if required

Ongoing support

The same engineers who installed your machine are the ones who answer the phone when something goes wrong. No call centres, no strangers.

Not sure which machine fits your operation?

Tell us your throughput and load type. We'll advise honestly.
