Inline wrappers

Supplied, installed and looked after.

We carry two brands for inline wrapping. SmartWasp turntable, rotary arm and ring wrappers alongside Effe's Rotax rotating arm range - each one installed, commissioned and supported by the same UK engineers. One contact for supply, consumables and servicing.

Full

Commissioning and operator training on every machine we supply.

Brands supplied - SmartWasp and Effe.

Engineer coverage for installation, commissioning and ongoing support.

Contact for supply, consumables, servicing and breakdowns.

All machines

Find the right wrapper.

Turntable, rotary arm or ring type - not sure which suits your line? Tell us your throughput, load type and conveyor setup.

From £15,000

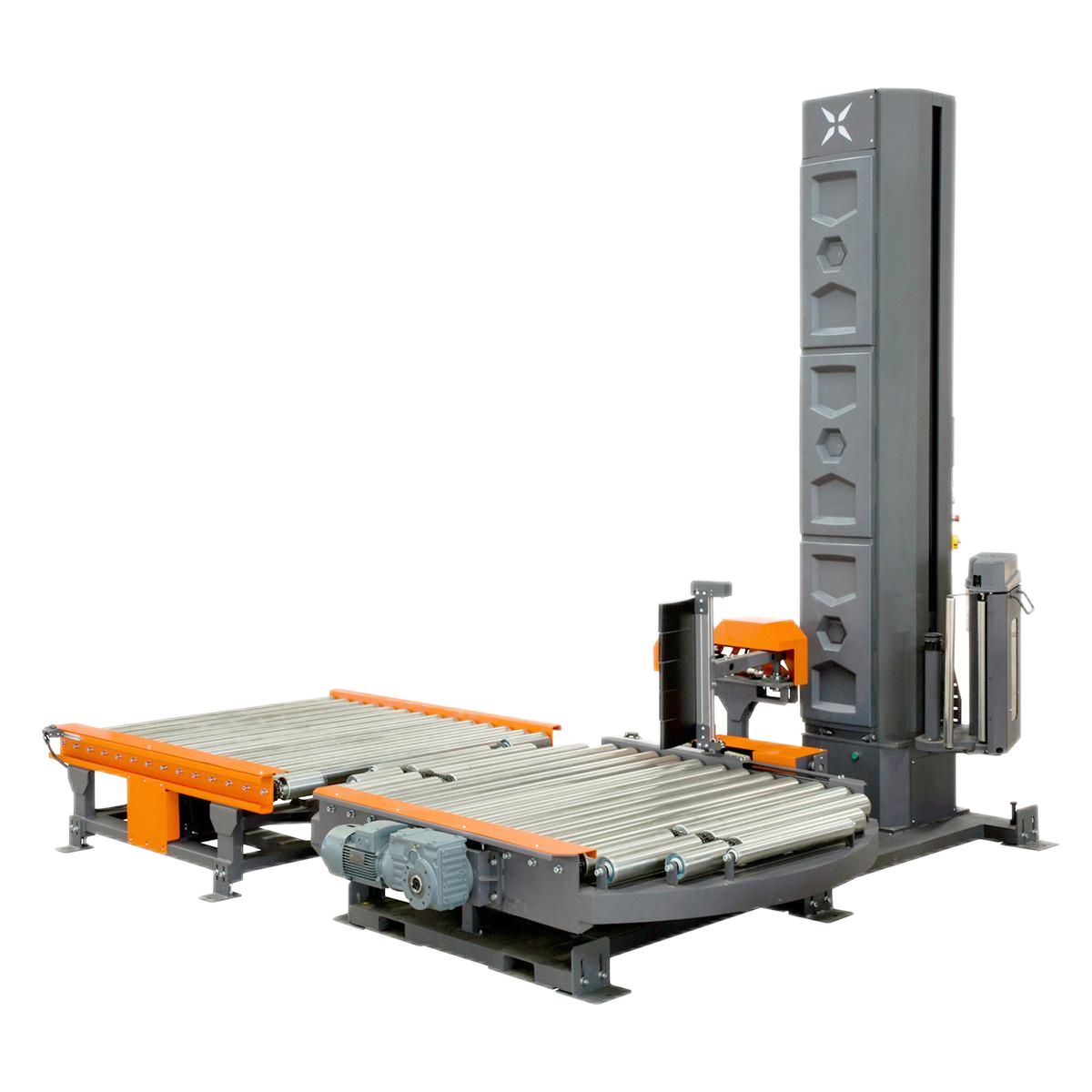

S300

HPS recommends if

You need a fully automatic inline turntable that handles heavy loads without operator input. Siemens PLC throughout, 2000mm slewing ring turntable and 3000kg capacity.

25-30 pallets / hr

300% pre-stretch

3000kg max load

Watch it in action →

Key features

Fully automatic - no operator required during cycle
2000mm slewing ring turntable, 0-15 RPM
300% motorised pre-stretch as standard
Siemens PLC and inverter throughout
SICK proximity sensors and photoelectric pallet height detection
Auto film cut and clamp (heat)

From £20,000

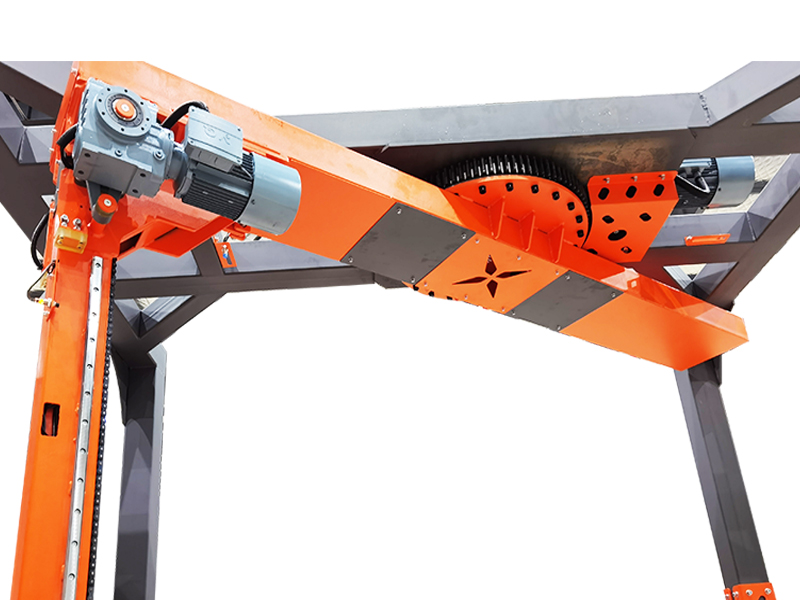

T1000

HPS recommends if

The pallet can't rotate - heavy, unstable or irregular loads. The arm revolves around the stationary pallet, so the load stays put throughout the cycle.

35-40 pallets / hr

250% pre-stretch std

Arm pallet stationary

Watch it in action →

Key features

Rotating arm - pallet stays stationary throughout the cycle
35-40 pallets per hour; 2000mm ring drive, 0-30 RPM
250% motorised pre-stretch as standard
Siemens PLC, touch screen and inverter
SICK position sensors; max pallet 1200 x 1200mm
Auto film cut and clamp (heat); 380V / 60Hz

Price on enquiry

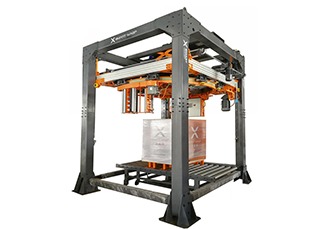

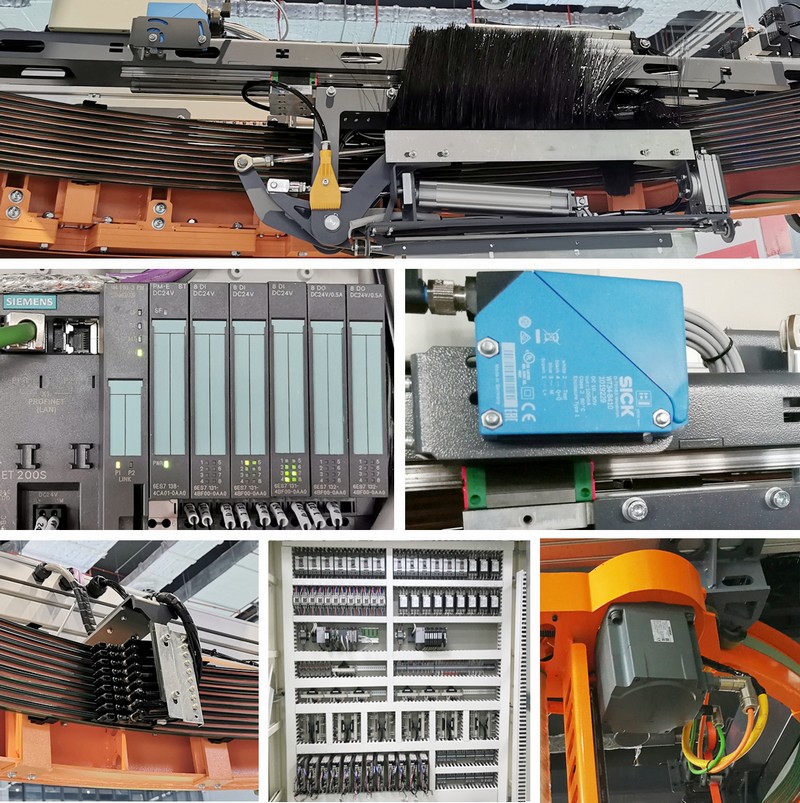

T1300

HPS recommends if

Throughput is the priority. The pallet conveys through the ring rather than rotating - faster cycle times, lower energy draw and a more stable wrap on awkward loads.

Up to 60 pallets / hr

250% pre-stretch std

Ring type - no rotation

Watch it in action →

Key features

Ring type - pallet passes through the machine, no rotation
Up to 60 pallets per hour; 2200mm ring, 0-30 RPM
250% motorised pre-stretch; Siemens servo film carriage motor
Siemens PLC and touch screen; SICK position sensors
FESTO and AIRTAC cylinders; max pallet 1200 x 1200mm, 2000kg
Auto film cut and clamp (heat); 380V / 60Hz

Price on enquiry

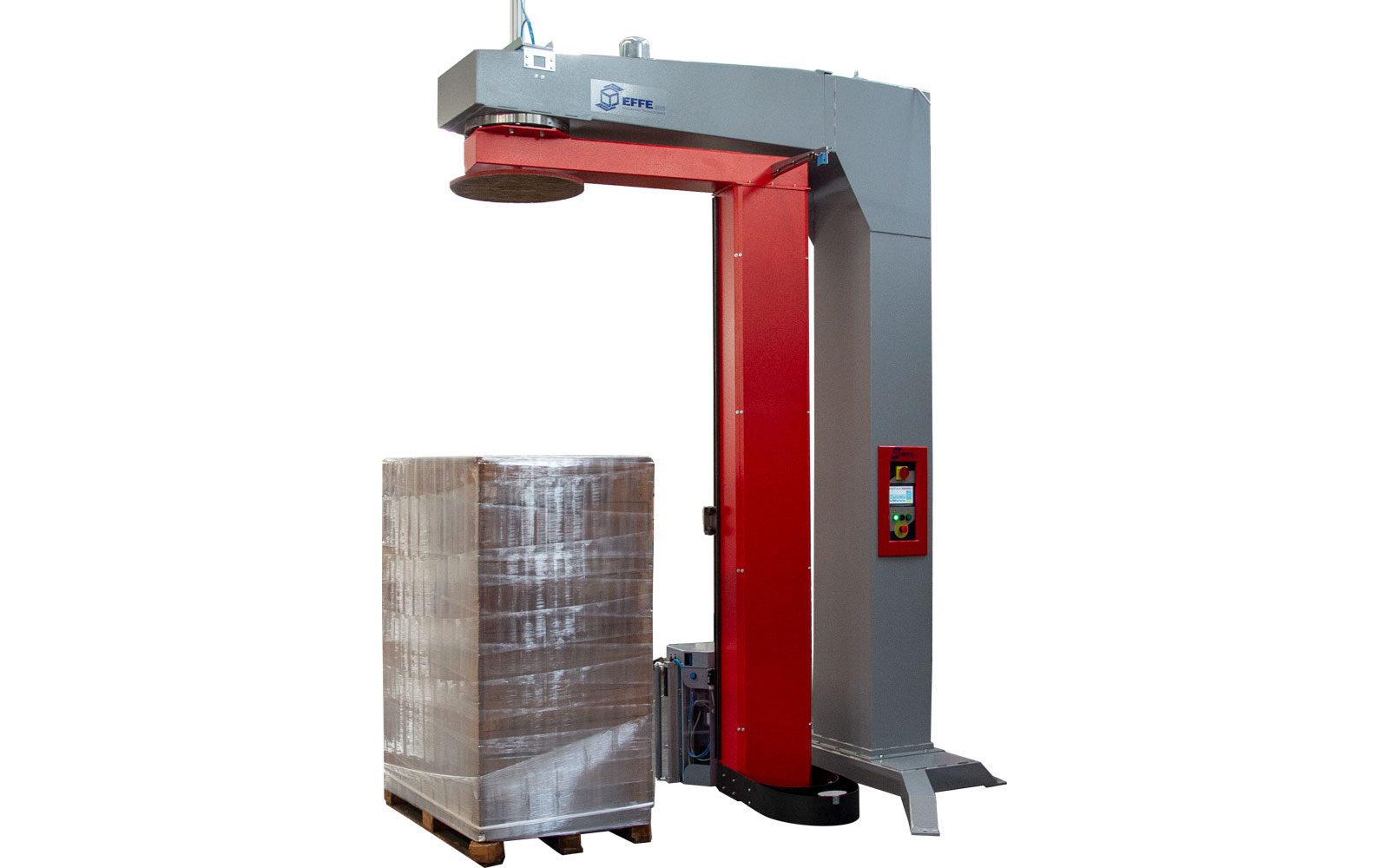

Rotax S3350

HPS recommends if

You want a semi-automatic rotating arm machine with Italian build quality and a proper Siemens touch screen. Operator triggers the cycle - the machine wraps, cuts film and stops.

Up to 25 pallets / hr

Up to 300% pre-stretch

Unlimited load capacity

Watch it in action →

Key features

Rotating arm - pallet stays stationary throughout

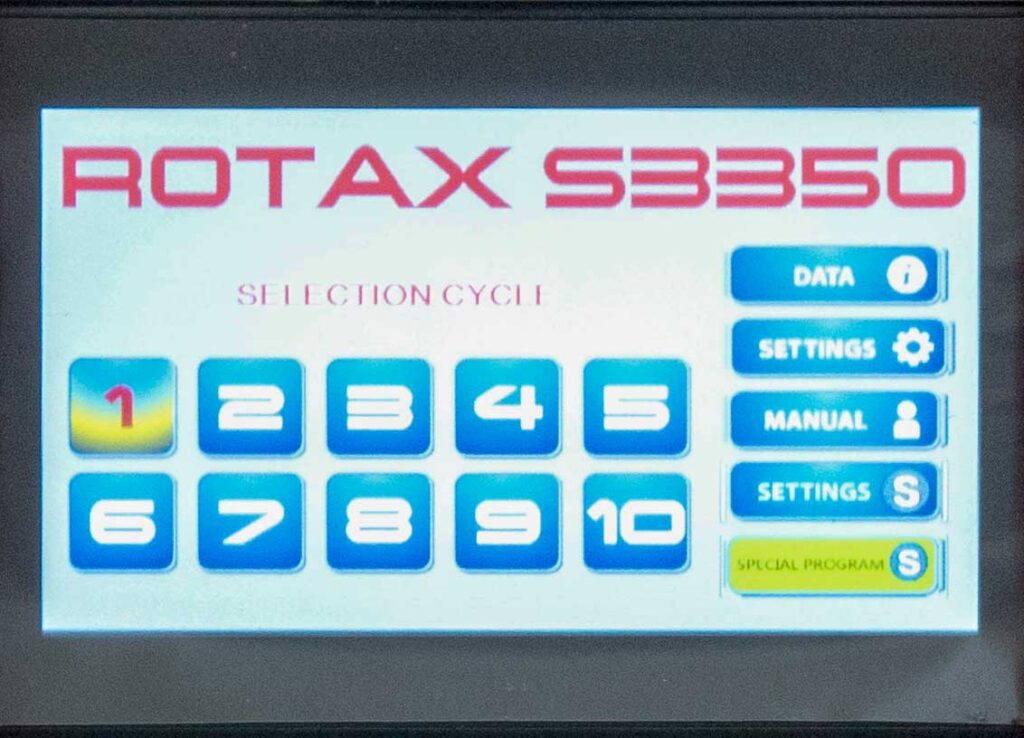

Siemens touch screen control panel
10 password-protected wrapping programmes
Up to 300% pre-stretch standard (400% dual motor option)
Arm speed 4-15 RPM, inverter controlled
Auto film cut at end of cycle - up to 1200x1200mm pallet

Price on enquiry

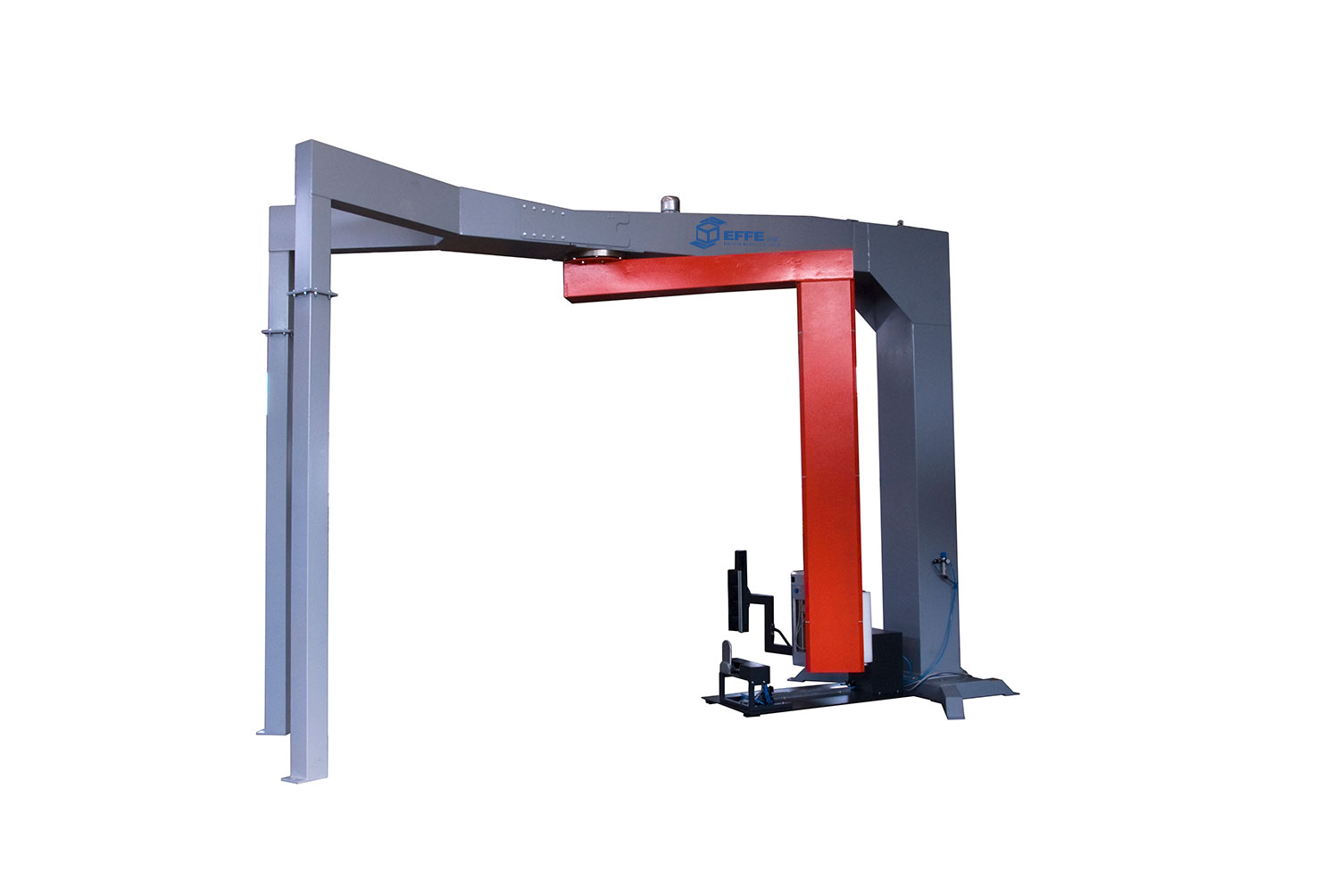

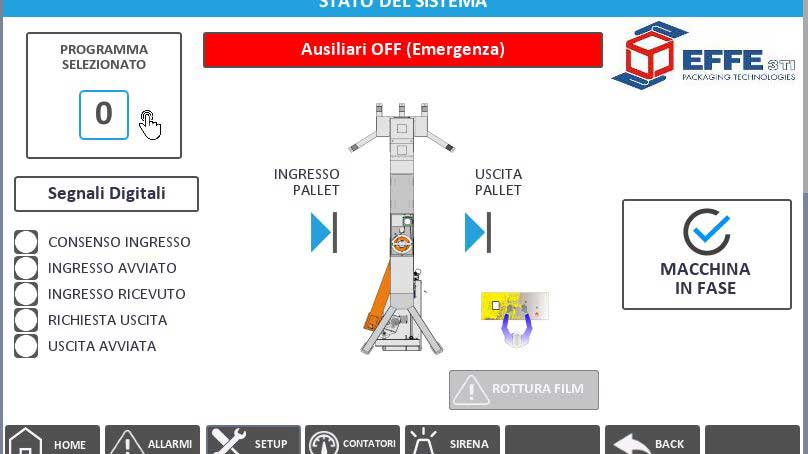

Rotax S5500

HPS recommends if

You need a fully automatic rotating arm that integrates into a production line. No operator presence during cycle - pallets in, wrapped, ejected. PLC-controlled with Profinet interface as standard.

Up to 35 pallets / hr

Up to 300% pre-stretch

Unlimited load capacity

Watch it in action →

Key features

Rotating arm - pallet stays stationary, no rotation during cycle
Fully automatic - no operator presence required during wrapping
PLC-controlled work cycles with Profinet interface standard
Up to 300% pre-stretch (standard 200%), 400% dual motor option
Arm rotation speed adjustable via inverter; stop position via sensor
Separate programming of high and low reinforcement turns
Auto pallet height detection via photocell; reel carriage fall prevention
Roping device available as option

What's included

The machine is one part of it.

Every machine we supply comes with the people to back it up. Delivery and installation are quoted separately - everything below comes with the machine as standard.

Commissioning

A qualified engineer sets the machine up on your site, tests it on your actual pallets and confirms it's running to spec before they leave.

Operator training

We train whoever operates the machine on handover - cycle selection, film loading, basic fault recognition. Your team runs it properly from day one.

Manufacturer warranty

Effe Rotax machines carry a 3-year manufacturer warranty from Effe3ti as standard. SmartWasp machines are covered by their own manufacturer warranty - confirm on enquiry.

Ongoing support

The same engineers who installed your machine are the ones who answer the phone when something goes wrong. No call centres, no strangers.

Keep it running

Everything the machine needs after day one.

Machinery goes down. Film runs out. Operators change. We cover all of it from the same place you bought the machine.

Two planned visits a year, priority breakdown response and engineer reports after every job. Your first service is free on any machine we supply.

View servicing →

Servicing plans

→

Between services and breakdown callouts - reactive support, parts sourcing and technical advice from the engineers who know these machines.

View ongoing support →

Ongoing support

→

Film spec'd to your machine. Wrong gauge or width is one of the most common causes of avoidable wrapper faults. We match the film to how your machine runs.

View consumables →

Consumables

→

Not sure which machine fits your line?

Tell us your throughput, load type and conveyor setup. We'll advise honestly.
