Pallet Strapping | Hayes Packaging

Pallet strapping

Supplied, installed and kept running.

From semi-automatic to inline fully automatic. We supply, install and support pallet strapping machines from 2 brands - then stay available for consumables, service and breakdowns from the same contact.

3
Machines in the range - semi-automatic through to fully automatic inline.
2
Brands - Transpak and Mastek - covering the full throughput range.
UK
Engineer coverage for installation, commissioning and ongoing support.
1
Contact for machine supply, strap and servicing.

All machines

Find the right strapper.

Not sure which fits? Tell us your throughput, pallet size and strap type. We'll advise honestly.

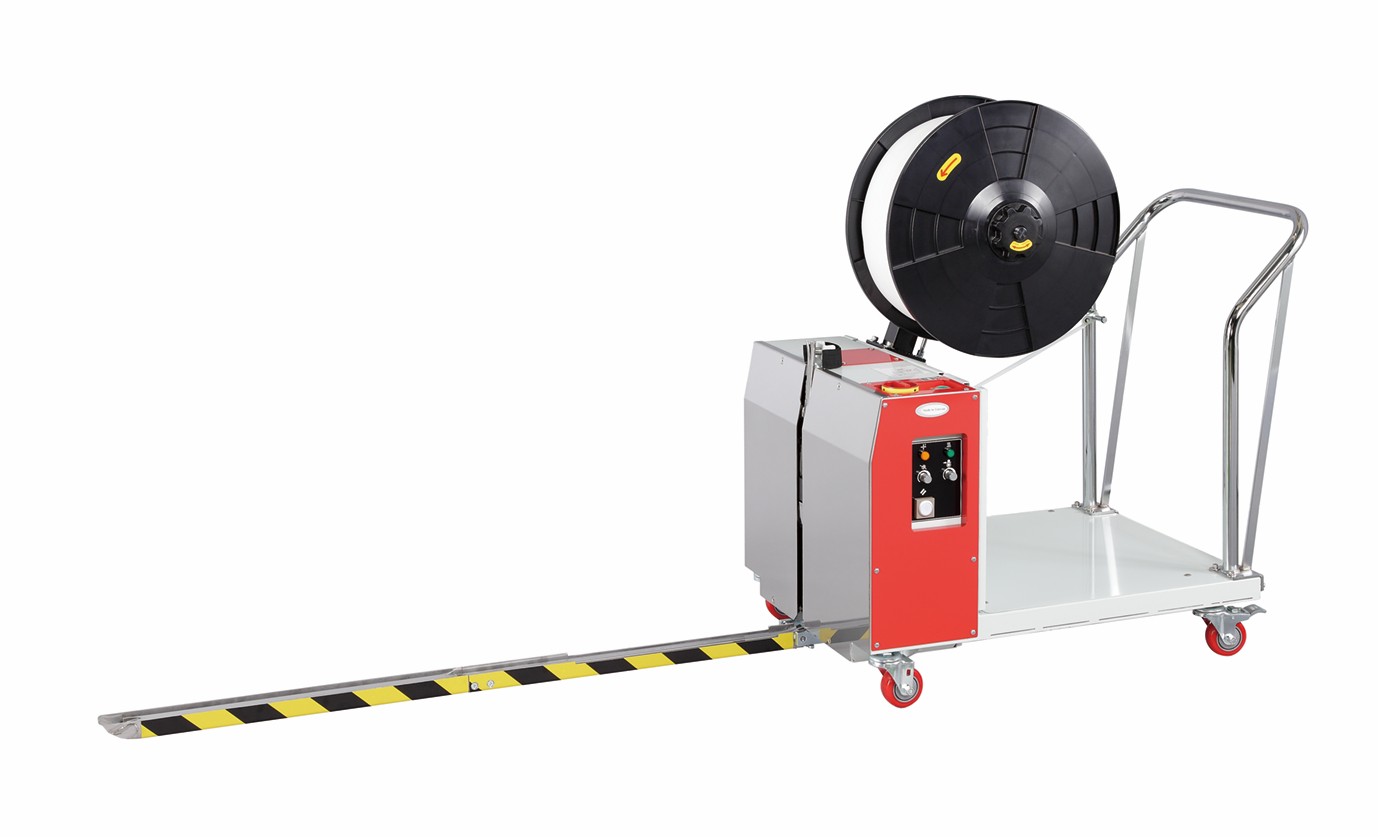

Transpak TP-502MV pallet strapper

Transpak TP-502MV

HPS recommends if

Lower throughput where pallets need strapping but a conveyor line isn't justified. Single-phase supply means it runs from any socket, and at 93kg it'll reposition as the line layout changes.

8-70kg tension range
1250mm arch length
1-phase power supply
Transpak TP-502MV
Watch it in action →

Key features

  • Semi-automatic operation - operator positions the strap, machine tensions and seals
  • PP strapping in 9mm, 12mm or 15.5mm width
  • Tension range 8-70kg for standard pallet loads
  • 1,250mm arch length covers a full-width standard pallet
  • Runs from a standard socket - single-phase 110-240V
  • 93kg - portable enough to reposition as operations change
Download spec sheet →

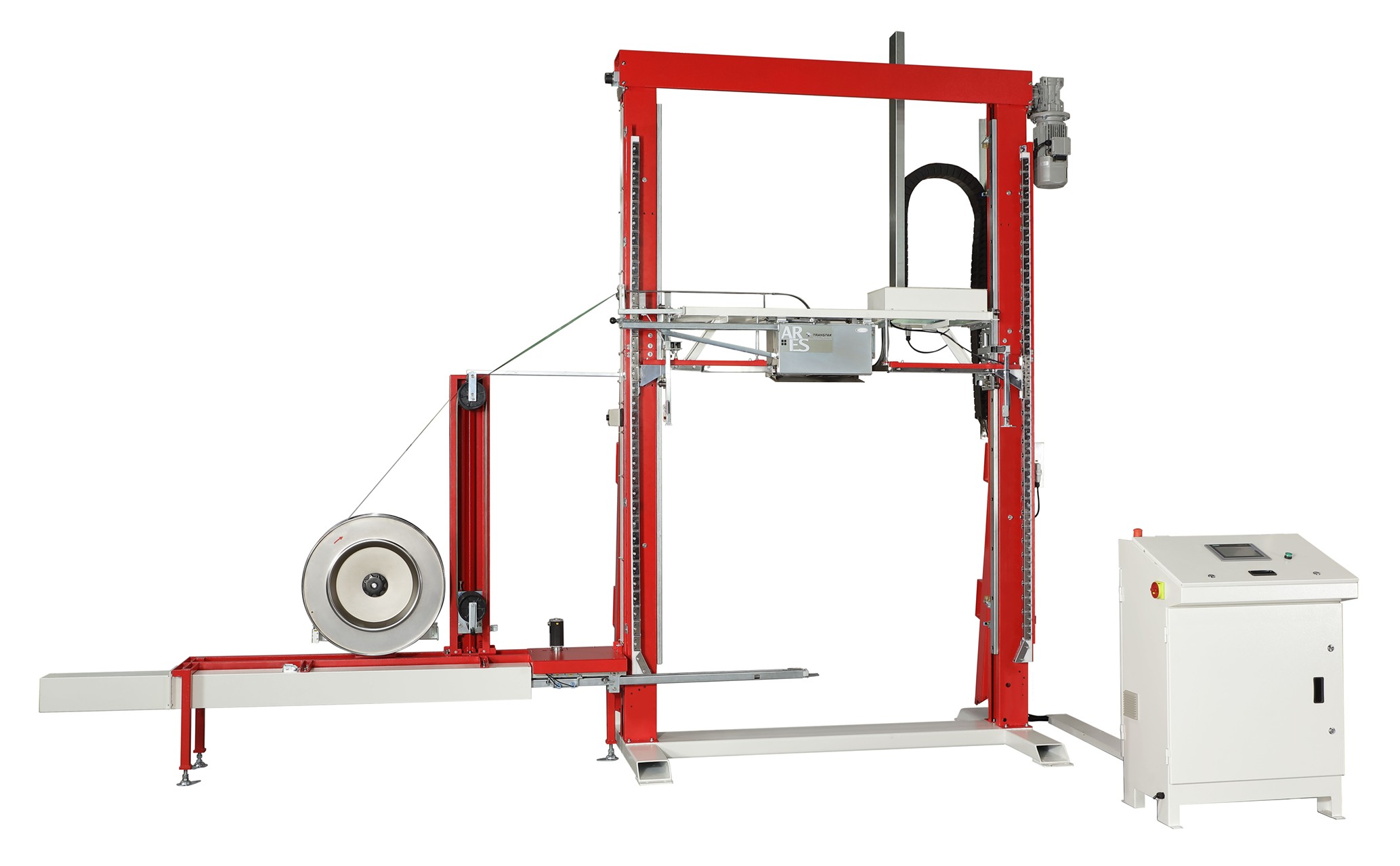

Transpak TP-733VTSP pallet strapper

Transpak TP-733VTSP

HPS recommends if

You're running pallets through on a conveyor and need strapping to keep up. Up to 120 pallets an hour, with single or twin-head to cover cross and longitudinal straps in one pass.

1100-3200N tension range
2500kg compression
Heat seal sealing method

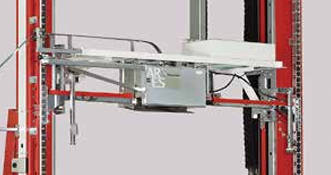

TP-733VTSP strap feed detail

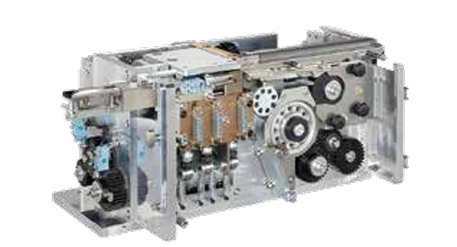

TP-733VTSP strapping head
Watch it in action →

Key features

  • Fully automatic cycle - pallets pass through on conveyor, no operator involvement during running
  • Up to 120 pallets per hour throughput
  • Single-head (VTSP-S) or twin-head (VTSP-T) configuration
  • Up to 2,500kg compression force for load consolidation
  • PP and PET strapping, 9mm, 12mm or 15.5mm width
  • 3-phase supply - 220/380/400/415V, 50/60Hz
Download spec sheet →

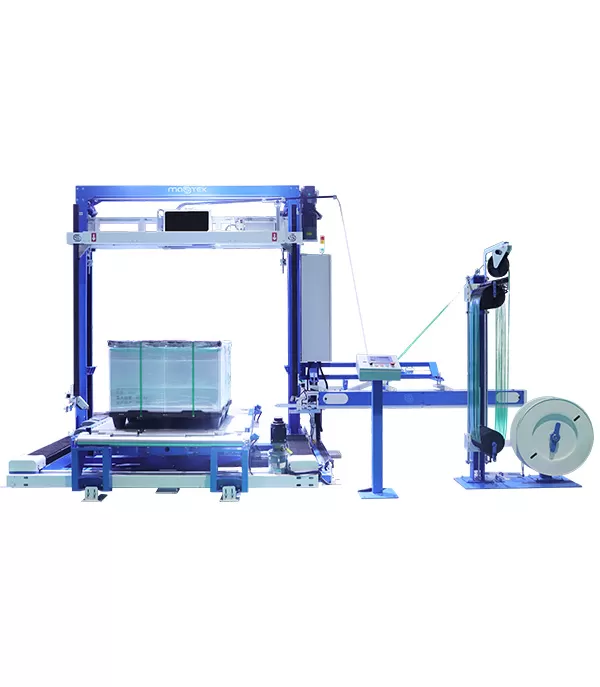

Mastek MK300 pallet strapper

Mastek MK300

HPS recommends if

Standard pallet loads where 500kg compression is enough. Sonic weld head, Siemens PLC with Ethernet, 3-year strapping head warranty.

Sonic weld sealing method
500-3000N tension range
3 yr head warranty

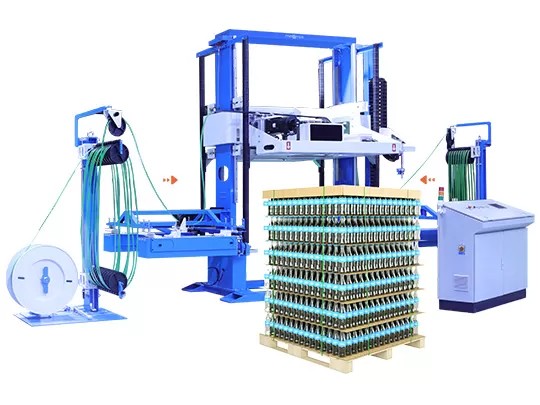

Mastek MK300 side view

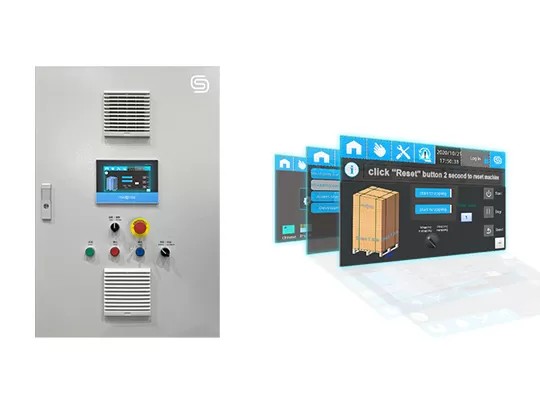

Mastek MK300 system view
Watch it in action →

Key features

  • Siemens PLC with Ethernet communication
  • Molex IoT touchscreen for parameter control and monitoring
  • Sonic weld strapping head; tension range 500-3,000N, fully adjustable
  • PP and PET strapping, 13mm or 15mm
  • Package girth up to 1,500mm (2,500mm option)
  • CE certified, 3-year strapping head warranty
Download spec sheet →

What's included

The machine is one part of it.

Every machine we supply comes with the people behind it. Delivery and installation are quoted separately - everything below comes with the machine as standard.

Commissioning

A qualified engineer sets the machine up on your site, tests it on your actual pallets and confirms it's running to spec before they leave.

Operator training

We train whoever runs the machine on handover - tension settings, strap loading, basic fault recognition. Your team runs it properly from day one.

Strap supply

PP and PET strap available from the same contact as the machine. We match the strap spec to how your machine is set up - wrong grade is one of the most common causes of avoidable faults.

Ongoing support

The same engineers who installed your machine are the ones who answer the phone when something goes wrong. No call centres, no strangers.

Keep it running

Everything the machine needs after day one.

Machinery goes down. Strap runs out. Operators change. We cover all of it from the same place you bought the machine.

Servicing plans

Two planned visits a year, priority breakdown response and engineer reports after every job. Same team, same engineers.

View servicing →

Servicing plans

→
Ongoing support

Between services and breakdown callouts - reactive support, parts sourcing and technical advice from the engineers who know these machines.

View ongoing support →

Ongoing support

→
Strapping consumables

PP and PET strap matched to your machine setup. Wrong width or grade is the most common cause of avoidable strapping faults. We get the spec right.

View strapping consumables →

Strapping consumables

→

Not sure which machine fits your operation?

Tell us your throughput, load type and strap requirements. We'll advise honestly.
